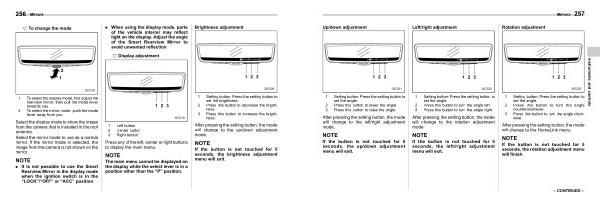

256
Mirrors
! To change the mode |
S03AP110301 |
. When using the display mode , parts of the vehicle interior may reflect light on the display . Adjust the angle of the Smart Rearview Mirror to avoid unwanted reflection . |
Brightness adjustment |
! Display adjustment
S03AP110307
1 To select the display mode , first adjust the rearview mirror , then pull the mode lever towards you .
2 To select the mirror mode , push the mode lever away from you .
Select the display mode to show the image from the camera that is installed in the roof antenna .
Select the mirror mode to use as a normal mirror . If the mirror mode is selected , the image from the camera is not shown on the mirror .
NOTE
. It is not possible to use the Smart Rearview Mirror in the display mode when the ignition switch is in the “ LOCK ”/“ OFF ” or “ ACC ” position .
1 Left button 2 Center button 3 Right button
Press any of the left , center or right buttons to display the main menu .
NOTE
The main menu cannot be displayed on the display while the select lever is in a position other than the “ P ” position .
1 Setting button : Press the setting button to set the brightness .
2 Press this button to decrease the brightness .
3 Press this button to increase the brightness .
After pressing the setting button , the mode will change to the up / down adjustment mode .
NOTE
If the button is not touched for 5 seconds , the brightness adjustment menu will exit .
