210

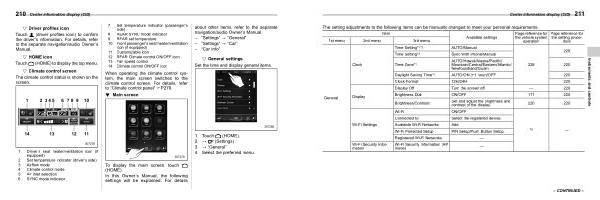

Center information display ( CID )
! Driver profiles icon
S03BS050105
Touch ( driver profiles icon ) to confirm the driver ’ s information . For details , refer to the separate navigation / audio Owner ’ s Manual .
! HOME icon
S03BS050106
Touch ( HOME ) to display the top menu .
! Climate control screen
S03BS050107
The climate control status is shown on the screen .
7 Set temperature indicator ( passenger ’ s side )
8 REAR SYNC mode indicator 9 REAR set temperature 10 Front passenger ’ s seat heater / ventilation icon ( if equipped )
11 Customizable icon 12 REAR Climate control ON / OFF icon 13 Fan speed control 14 Climate control ON / OFF icon
When operating the climate control system , the main screen switches to the climate control screen . For details , refer to “ Climate control panel ” FP279 .
! Main screen
S03BS0502
about other items , refer to the separate navigation / audio Owner ’ s Manual .
– “ Settings ” ? “ General ” – “ Settings ” ? “ Car ” – “ Car Info ”
! General settings
S03BS050201
Set the time and display general items .
1 Driver ’ s seat heater / ventilation icon ( if equipped )
2 Set temperature indicator ( driver ’ s side ) 3 Airflow mode 4 Climate control mode 5 Air inlet selection 6 SYNC mode indicator
To display the main screen , touch ( HOME ).
In this Owner ’ s Manual , the following settings will be explained . For details
1 . Touch ( HOME ). 2 . ? ( Settings ) 3 . ? “ General ” 4 . Select the preferred menu .
