204

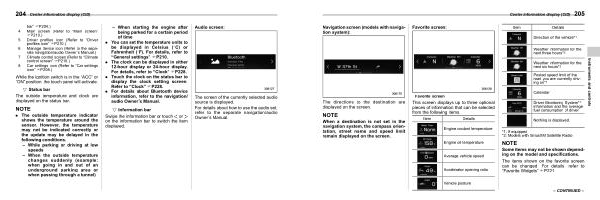

Center information display ( CID )
bar ” FP204 .)
4 Main screen ( Refer to “ Main screen ” FP210 .)
5 Driver profiles icon ( Refer to “ Driver profiles icon ” FP210 .)
6 Manage device icon ( Refer to the separate navigation / audio Owner ’ s Manual .)
7 Climate control screen ( Refer to “ Climate control screen ” FP210 .)
8 Car settings icon ( Refer to “ Car settings icon ” FP208 .)
While the ignition switch is in the “ ACC ” or “ ON ” position , the touch panel will activate .
! Status bar
S03BS050101
The outside temperature and clock are displayed on the status bar .
NOTE
. The outside temperature indicator shows the temperature around the sensor . However , the temperature may not be indicated correctly or the update may be delayed in the following conditions . – While parking or driving at low speeds
– When the outside temperature changes suddenly ( example : when going in and out of an underground parking area or when passing through a tunnel )
– When starting the engine after being parked for a certain period of time
. You can set the temperature units to be displayed in Celsius ( 8C ) or Fahrenheit ( 8F ). For details , refer to “ General settings ” FP210 .
. The clock can be displayed in either 12-hour display or 24-hour display . For details , refer to “ Clock ” FP228 .
. Touch the clock on the status bar to display the clock setting screen . Refer to “ Clock ” FP228 .
. For details about Bluetooth device information , refer to the navigation / audio Owner ’ s Manual .
! Information bar
S03BS050102
Swipe the information bar or touch or on the information bar to switch the item displayed .
Audio screen :
The screen of the currently selected audio source is displayed .
For details about how to use the audio set , refer to the separate navigation / audio Owner ’ s Manual .
