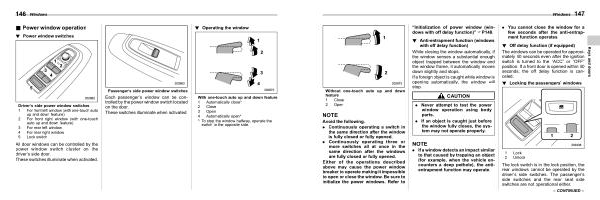

146
Windows
& Power window operation
S02AH07
! Power window switches
S02AH0701
! Operating the window
S02AH0702
Driver ’ s side power window switches 1 For front left window ( with one-touch auto up and down feature )
2 For front right window ( with one-touch auto up and down feature )
3 For rear left window 4 For rear right window 5 Lock switch
All door windows can be controlled by the power window switch cluster on the driver ’ s side door .
These switches illuminate when activated .
Passenger ’ s side power window switches
Each passenger ’ s window can be controlled by the power window switch located on the door .
These switches illuminate when activated .
With one-touch auto up and down feature 1 Automatically close * 2 Close 3 Open 4 Automatically open * *: To stop the window halfway , operate the switch to the opposite side .
