Changing settings

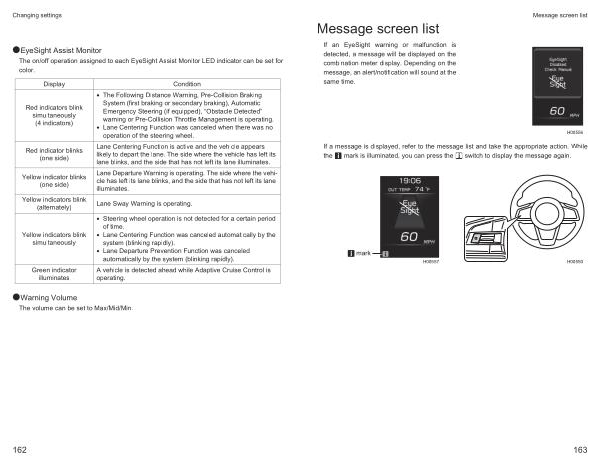

●EyeSight Assist Monitor The on / off operation assigned to each EyeSight Assist Monitor LED indicator can be set for color .
Display
Red indicators blink simultaneously ( 4 indicators )
Red indicator blinks ( one side )
Yellow indicator blinks ( one side )
Yellow indicators blink ( alternately )
Yellow indicators blink simultaneously
Green indicator illuminates
Condition
• The Following Distance Warning , Pre-Collision Braking System ( first braking or secondary braking ), Automatic Emergency Steering ( if equipped ), “ Obstacle Detected ” warning or Pre-Collision Throttle Management is operating .
• Lane Centering Function was canceled when there was no operation of the steering wheel .
Lane Centering Function is active and the vehicle appears likely to depart the lane . The side where the vehicle has left its lane blinks , and the side that has not left its lane illuminates .
Lane Departure Warning is operating . The side where the vehicle has left its lane blinks , and the side that has not left its lane illuminates .
Lane Sway Warning is operating .
• Steering wheel operation is not detected for a certain period of time .
• Lane Centering Function was canceled automatically by the system ( blinking rapidly ).
• Lane Departure Prevention Function was canceled automatically by the system ( blinking rapidly ).
A vehicle is detected ahead while Adaptive Cruise Control is operating .
●Warning Volume The volume can be set to Max / Mid / Min .
162
