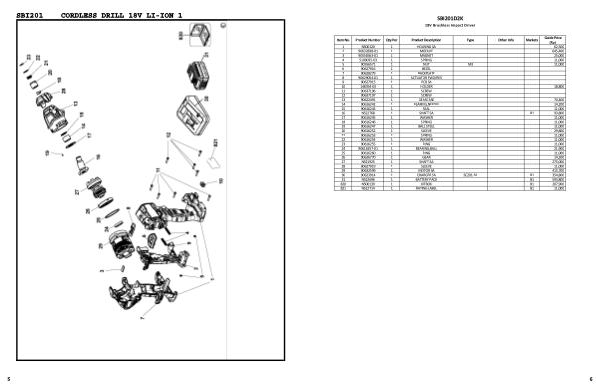

Stanley Spare Part E-Book | Page 9

SBI201D2K
18V Brushless Impact Driver
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 N500120 1 HOUSING SA 62,500
2 90632838-01 1 MODULE 645,400
3 90556563-01 1 MAGNET 25,000
4 5100035-03 1 SPRING 11,000
5 90556571 1 NUT M3 11,000
6 90627916 1 BEZEL
7 90628279 1 BACKPLATE
8 90629054-01 1 ACTUATOR FWD/REV
9 90627915 1 PCB SA
10 148354-03 1 HOLDER 18,800
11 90637196 1 SCREW
12 90637197 1 SCREW
13 90622491 1 GEARCASE 70,400
14 90616242 1 BEARING,NEEDLE 14,200
15 90616243 1 SEAL 11,000
16 N522768 1 SHAFT SA B1 93,800
17 90616245 1 WASHER 11,000
18 90616246 1 SPRING 11,000
19 90616247 1 BALL STEEL 11,000
20 90616252 1 SLEEVE 29,800
21 90616253 1 SPRING 11,000
22 90616254 1 WASHER 11,000
23 90616255 1 RING 11,000
24 90616257-01 1 BEARING,BALL 21,900
25 90616260 1 RING 11,000
26 90626770 1 GEAR 14,200
27 N521925 1 SHAFT SA 275,000
28 90627919 1 SLEEVE 11,000
29 90632599 1 MOTOR SA 415,700
30 90623914 1 CHARGER SA SC201-B1 B1 354,800
31 N522696 1 BATTERY PACK B1 593,800
820 N500139 1 KITBOX B1 207,900
821 N522714 1 RATING LABEL B1 11,000
6
