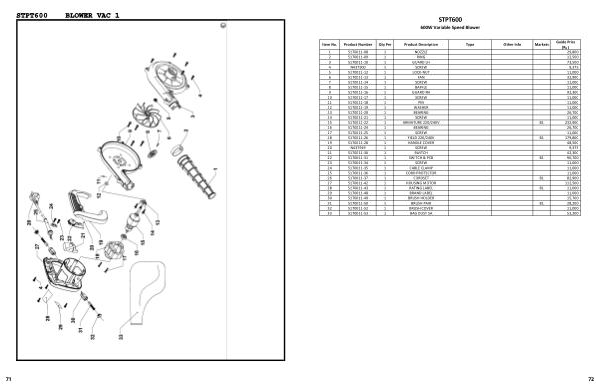

Stanley Spare Part E-Book | Page 75

STPT600
600W Variable Speed Blower
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 5170011-08 1 NOZZLE 29,800
2 5170011-09 1 RING 12,500
3 5170011-10 1 GUARD LH 73,500
4 N437900 1 SCREW 9,375
5 5170011-12 1 LOCK-NUT 11,000
6 5170011-13 1 FAN 32,900
7 5170011-14 1 SCREW 11,000
8 5170011-15 1 BAFFLE 11,000
9 5170011-16 1 GUARD RH 92,300
10 5170011-17 1 SCREW 11,000
11 5170011-18 1 PIN 11,000
12 5170011-19 1 WASHER 11,000
13 5170011-20 1 BEARING 26,700
14 5170011-21 1 SCREW 11,000
15 5170011-22 1 ARMATURE 220/240V B1 232,900
16 5170011-24 1 BEARING 26,700
17 5170011-25 1 SCREW 11,000
18 5170011-26 1 FIELD 220/240V B1 179,800
19 5170011-28 1 HANDLE COVER 48,500
20 N437919 1 SCREW 9,375
21 5170011-30 1 SWITCH 42,300
22 5170011-31 1 SWITCH & PCB B1 90,700
23 5170011-34 1 SCREW 11,000
24 5170011-35 1 CABLE CLAMP 11,000
25 5170011-36 1 CORD PROTECTOR 11,000
26 5170011-37 1 CORDSET B1 82,900
27 5170011-42 1 HOUSING MOTOR 112,500
28 5170011-43 1 RATING LABEL B1 11,000
29 5170011-48 1 BRAND LABEL 11,000
30 5170011-49 1 BRUSH HOLDER 15,700
31 5170011-50 1 BRUSH PAIR B1 28,200
32 5170011-52 1 BRUSH COVER 11,000
33 5170011-53 1 BAG DUST SA 53,200
72
