Stanley Spare Part E-Book | Page 71

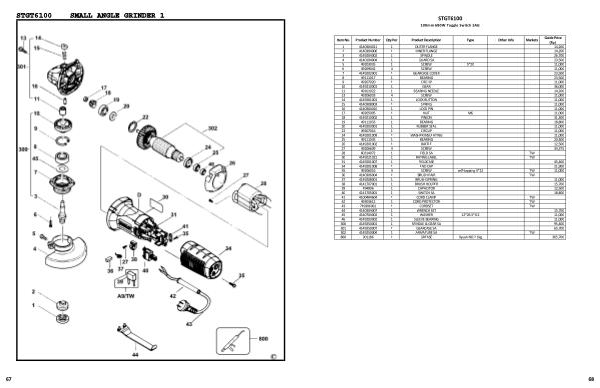

STGT6100
100mm 680W Toggle Switch SAG
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 4140304011 1 OUTER FLANGE 14,200
2 4140304006 1 INNER FLANGE 14,200
3 4149204002 1 SPINDLE 26,700
4 4140104004 1 GUARD SA 23,500
5 49203035 1 SCREW 5*20 11,000
6 49209042 4 SCREW 11,000
7 4149202001 1 GEARCASE COVER 23,500
8 49111017 1 BEARING 23,500
9 49207020 1 CIRCLIP 11,000
10 4149210001 1 GEAR 36,000
11 49101022 1 BEARING NEEDLE 14,200
13 49206033 4 SCREW 11,000
14 4149201001 1 LOCK BUTTON 11,000
15 4140308003 1 SPRING 11,000
16 4140304010 1 LOCK PIN 11,000
17 49205005 1 NUT M6 11,000
18 4149210002 1 PINION 31,300
19 49111033 1 BEARING 18,800
20 4149203001 1 RUBBER SEAL 11,000
22 49207016 1 CIRCLIP 11,000
24 4149201009 1 WASHER INSULATING 11,000
25 49111035 1 BEARING 20,400
26 4149201002 1 BAFFLE 12,500
27 49206609 4 SCREW 34,375
28 60314072 1 FIELD SA TW
30 4149221021 1 RATING LABEL TW
31 4149201007 1 FIELDCASE 45,400
34 4149201008 1 END CAP 21,900
35 49206016 4 SCREW self-tapping 4*12 TW 11,000
36 4140306004 1 BRUSH PAIR TW
37 4149208001 1 BRUSH SPRING 11,000
38 4141707001 1 BRUSH HOLDER 15,700
39 494006 1 CAPACITOR 12,500
40 4141705001 1 SWITCH SA 18,800
41 4100404604 1 CORD CLAMP TW
42 49303612 1 CORD PROTECTOR TW
43 Z49306061 1 CORDSET TW
44 4140304007 1 WRENCH SET 15,700
45 4140704002 1 WASHER 12*26.5*0.2 11,000
46 4149203002 1 SLEEVE BEARING 11,000
300 4149250001 1 SPINDLE & GEAR SA 95,400
301 4149250007 1 GEARCASE SA 65,700
302 4149250004 1 ARMATURE SA TW
800 901186 1 GREASE liyuan NO.2 1kg 365,700
68
