Stanley Spare Part E-Book | Page 7

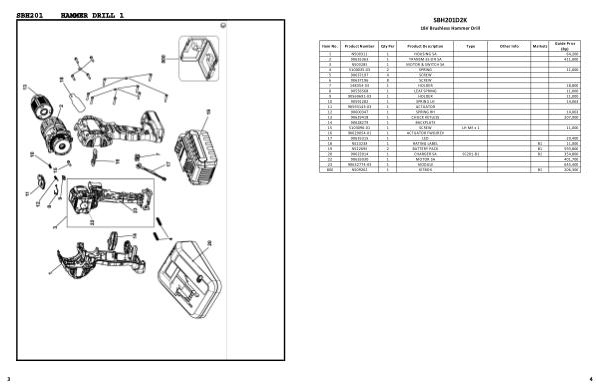

SBH201D2K
18V Brushless Hammer Drill
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 N500311 1 HOUSING SA 64,200
2 90635363 1 TRANSMISSION SA 411,000
3 N503285 1 MOTOR & SWITCH SA
4 5100035-03 2 SPRING 11,000
5 90637197 4 SCREW
6 90637196 8 SCREW
7 148354-03 1 HOLDER 18,800
8 90556568 1 LEAF SPRING 11,000
9 90569691-03 1 HOLDER 11,000
10 90591282 1 SPRING LH 14,063
11 90593143-03 1 ACTUATOR
12 90600347 1 SPRING RH 14,063
13 90629418 1 CHUCK KEYLESS 207,900
14 90628279 1 BACKPLATE
15 5103096-01 1 SCREW LH M6 x 1 11,000
16 90629054-01 1 ACTUATOR FWD/REV
17 90635315 1 LED 20,400
18 N523238 1 RATING LABEL B1 11,000
19 N522696 2 BATTERY PACK B1 593,800
20 90623914 1 CHARGER SA SC201-B1 B1 354,800
22 90635030 1 MOTOR SA 401,700
23 90632774-03 1 MODULE 645,400
800 N509262 1 KITBOX B1 206,300
4
