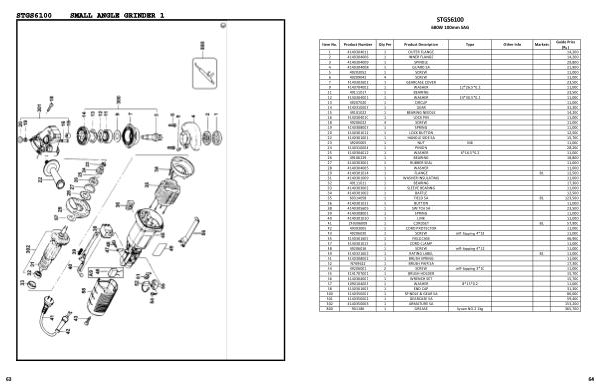

Stanley Spare Part E-Book | Page 67

STGS6100
680W 100mm SAG
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 4140304011 1 OUTER FLANGE 14,200
2 4140304006 1 INNER FLANGE 14,200
3 4140304009 1 SPINDLE 29,800
4 4140304008 1 GUARD SA 21,900
5 49203052 1 SCREW 11,000
6 49209042 4 SCREW 11,000
7 4140302602 1 GEARCASE COVER 23,500
9 4140704002 1 WASHER 12*26.5*0.2 11,000
11 49111017 1 BEARING 23,500
12 4140304001 1 WASHER 24*30.5*0.3 11,000
13 49207020 1 CIRCLIP 11,000
14 4140310003 1 GEAR 31,300
15 49101022 1 BEARING NEEDLE 14,200
16 4140304010 1 LOCK PIN 11,000
18 49206022 4 SCREW 11,000
19 4140308003 1 SPRING 11,000
20 4140301012 1 LOCK BUTTON 12,500
22 4140301001 1 HANDLE SIDE SA 15,700
23 49205005 1 NUT M6 11,000
24 4140310004 1 PINION 28,200
25 4140304012 1 WASHER 6*16.5*0.2 11,000
26 49106229 1 BEARING 18,800
27 4140303001 1 RUBBER SEAL 11,000
28 4140304005 1 WASHER 11,000
29 4140301014 1 FLANGE B1 12,500
31 4140301009 1 WASHER INSULATING 11,000
32 49111011 1 BEARING 17,300
33 4140303002 1 SLEEVE BEARING 11,000
34 4140301002 1 BAFFLE 12,500
35 60314058 1 FIELD SA B1 123,500
36 4140301011 1 BUTTON 11,000
38 4140305605 1 SWITCH SA 23,500
39 4140308001 1 SPRING 11,000
40 4140301010 1 LINK 11,000
41 Z49306009 1 CORDSET B1 57,900
42 49303005 1 CORD PROTECTOR 11,000
43 49206020 1 SCREW self-tapping 4*18 11,000
45 4140301605 1 FIELDCASE 46,900
47 4140301013 1 CORD CLAMP 11,000
48 49206016 1 SCREW self-tapping 4*12 11,000
49 4140321602 1 RATING LABEL B1 11,000
51 4140308002 1 BRUSH SPRING 11,000
52 N769622 1 BRUSH PAIR SA 17,300
54 49206001 2 SCREW self-tapping 3*10 11,000
55 4141707001 1 BRUSH HOLDER 15,700
56 4140304007 1 WRENCH SET 15,700
57 4090104003 1 WASHER 8*15*0.2 11,000
58 4140301603 1 END CAP 31,300
300 4140350001 1 SPINDLE & GEAR SA 86,000
301 4140350002 1 GEARCASE SA 59,400
302 4140350003 1 ARMATURE SA 153,200
800 901186 1 GREASE liyuan NO.2 1kg 365,700
64
