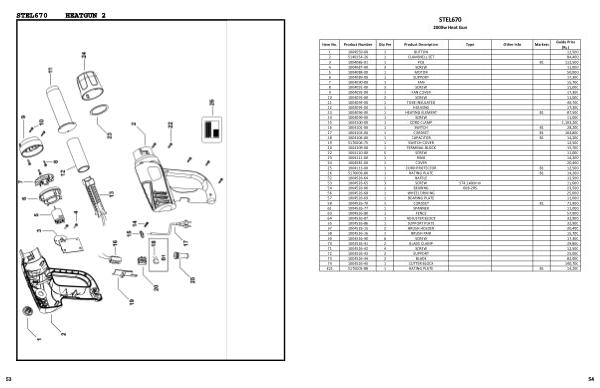

Stanley Spare Part E-Book | Page 57

STEL670
2000w Heat Gun
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 1004559-00 1 BUTTON 12,500
2 5140154-26 1 CLAMSHELL SET 84,400
3 1004086-01 1 PCB B1 112,500
4 1004087-00 3 SCREW 11,000
5 1004088-00 1 MOTOR 50,000
6 1004089-00 1 SUPPORT 17,300
7 1004090-00 1 FAN 15,700
8 1004091-00 3 SCREW 11,000
9 1004092-00 1 FAN COVER 17,300
10 1004093-00 2 SCREW 11,000
11 1004094-00 1 TUBE INSULATED 40,700
12 1004095-00 1 HOUSING 17,300
13 1004096-00 1 HEATING ELEMENT B1 87,500
14 1004099-00 1 SCREW 11,000
15 1004100-00 1 CORD CLAMP 1,103,200
16 1004101-00 1 SWITCH B1 28,200
17 1004103-00 1 CORDSET B1 104,800
18 1004106-00 1 CAPACITOR B1 14,200
19 5170006-75 1 SWITCH COVER 12,500
20 1004109-00 1 TERMINAL BLOCK 15,700
22 1004110-00 5 SCREW 11,000
23 1004111-00 1 RING 14,200
24 1004581-00 1 COVER 20,400
25 1004113-00 1 CORD PROTECTOR B1 12,500
26 5170006-80 1 RATING PLATE B1 14,200
52 1004526-64 1 BAFFLE 12,500
53 1004526-65 3 SCREW ST4.1x60mm 11,000
54 1004526-66 1 BEARING 608-2RS 23,500
56 1004526-68 1 WHEEL DRIVING 25,000
57 1004526-69 1 BEARING PLATE 11,000
58 1004526-70 1 CORDSET B1 71,900
61 1004526-77 1 SPANNER 11,000
63 1004526-80 1 FENCE 57,900
64 1004526-87 1 ADJUSTER BLOCK 32,900
65 1004526-86 1 SUPPORT PLATE 32,900
67 1004526-15 2 BRUSH HOLDER 20,400
68 1004526-16 1 BRUSH PAIR 15,700
69 1004526-40 6 SCREW 17,300
70 1004526-41 2 BLADE CLAMP 29,800
71 1004526-42 4 SCREW 12,500
72 1004526-43 2 SUPPORT 25,000
73 1004526-44 2 BLADE 82,900
74 1004526-45 1 CUTTER BLOCK 140,700
821 5170005-88 1 RATING PLATE B1 14,200
