Stanley Spare Part E-Book | Page 55

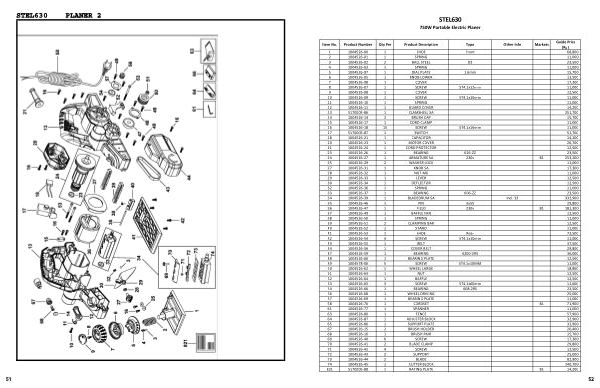

STEL630
750W Portable Electric Planer
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 1004526-00 1 SHOE Front 68,800
2 1004526-01 1 SPRING 11,000
3 1004526-02 2 BALL STEEL D3 23,500
4 1004526-03 1 SPRING 11,000
5 1004526-97 1 DIAL PLATE 1.6mm 15,700
6 1004526-05 1 KNOB LOWER 12,500
7 1004526-98 1 COVER 17,300
8 1004526-07 1 SCREW ST4.1x12mm 11,000
9 1004526-08 1 COVER 12,500
10 1004526-09 1 SCREW ST4.1x10mm 11,000
11 1004526-10 1 SPRING 11,000
12 1004526-11 1 GUARD COVER 14,200
13 5170005-86 1 CLAMSHELL SA 251,700
14 1004526-14 2 BRUSH CAP 15,700
15 1004526-17 1 CORD CLAMP 11,000
16 1004526-18 15 SCREW ST4.1x16mm 11,000
17 5170005-87 1 SWITCH 51,700
18 1004526-21 1 CAPACITOR 14,200
20 1004526-23 1 MOTOR COVER 26,700
21 1004526-24 1 CORD PROTECTOR 12,500
23 1004526-26 1 BEARING 626-ZZ 23,500
24 1004526-27 1 ARMATURE SA 230v B1 253,200
25 1004526-29 2 WASHER LOCK 11,000
27 1004526-31 1 KNOB SA 17,300
28 1004526-32 1 NUT M6 11,000
29 1004526-33 1 LEVER 12,500
30 1004526-34 1 DEFLECTOR 12,500
32 1004526-36 1 SPRING 11,000
33 1004526-37 1 BEARING 606-ZZ 23,500
34 1004526-39 1 BLADEDRUM SA Incl. 33 332,900
35 1004526-46 1 PIN 3x55 29,800
36 1004526-47 1 FIELD 230v B1 181,300
37 1004526-49 1 BAFFLE FAN 12,500
38 1004526-50 1 SPRING 11,000
39 1004526-51 2 CLAMPING BAR 12,500
40 1004526-52 1 STAND 11,000
41 1004526-53 1 SHOE Rear 73,500
42 1004526-54 4 SCREW ST4.1x10mm 11,000
43 1004526-55 1 BELT 37,500
44 1004526-56 1 COVER BELT 29,800
47 1004526-59 1 BEARING 6200-2RS 36,000
48 1004526-60 1 BEARING PLATE 12,500
49 1004578-00 5 SCREW ST4.1x10MM 11,000
50 1004526-62 1 WHEEL LARGE 18,800
51 1004526-63 1 NUT 12,500
52 1004526-64 1 BAFFLE 12,500
53 1004526-65 3 SCREW ST4.1x60mm 11,000
54 1004526-66 1 BEARING 608-2RS 23,500
56 1004526-68 1 WHEEL DRIVING 25,000
57 1004526-69 1 BEARING PLATE 11,000
58 1004526-70 1 CORDSET B1 71,900
61 1004526-77 1 SPANNER 11,000
63 1004526-80 1 FENCE 57,900
64 1004526-87 1 ADJUSTER BLOCK 32,900
65 1004526-86 1 SUPPORT PLATE 32,900
67 1004526-15 2 BRUSH HOLDER 20,400
68 1004526-16 1 BRUSH PAIR 15,700
69 1004526-40 6 SCREW 17,300
70 1004526-41 2 BLADE CLAMP 29,800
71 1004526-42 4 SCREW 12,500
72 1004526-43 2 SUPPORT 25,000
73 1004526-44 2 BLADE 82,900
74 1004526-45 1 CUTTER BLOCK 140,700
821 5170005-88 1 RATING PLATE B1 14,200
52
