Stanley Spare Part E-Book | Page 51

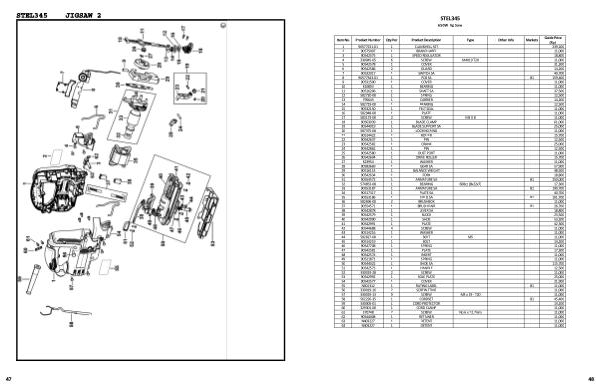

STEL345
650W Jig Saw
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 90577231-01 1 CLAMSHELL SET 239,200
2 90575007 1 BRAND LABEL 11,000
3 90542575 1 SPEED REGULATOR 18,800
4 330045-05 6 SCREW M4X10 T20 11,000
5 90542578 1 COVER 31,300
6 90542586 2 GUARD 14,200
7 90532017 1 SWITCH SA 40,700
8 90577343-01 1 PCB SA B1 159,400
9 90531500 1 COVER 11,000
10 810893 1 BEARING 11,000
11 90516206 1 SHAFT SA 37,500
12 582720-00 1 SPRING 12,500
13 795645 1 CARRIER 14,200
14 582719-00 1 BEARING 12,500
15 90532150 1 FELT SEAL 11,000
16 582948-00 1 PLATE 11,000
17 583173-00 2 SCREW M3 X 8 11,000
18 90563039 1 BLADE CLAMP 61,000
19 90544019 1 BLADE SUPPORT SA 25,000
20 587375-00 1 LOCKING RING 11,000
21 90514422 1 ROLLER 15,700
22 90542637 1 PIN 12,500
23 90542582 1 CRANK 25,000
24 90542862 1 PIN 12,500
25 90542580 1 DUST PORT 11,000
26 90542604 1 DRIVE ROLLER 15,700
27 823954 1 WASHER 11,000
28 90583669 1 GEAR SA 57,900
29 90516114 1 BALANCE WEIGHT 48,500
30 90542634 1 FORK 18,800
31 90554572 1 ARMATURE SA B1 250,000
32 574853-08 1 BEARING 608zz (8x22x7) 17,300
33 90553187 1 ARMATURE SA B1 190,700
34 90517317 1 PLATE SA 40,700
35 90553186 1 FIELD SA B1 101,700
36 582696-00 2 BRUSHBOX 11,000
37 90554571 1 BRUSH PAIR B1 26,700
38 90542878 1 LEVER SA 18,800
39 90542579 1 BLOCK 23,500
40 90542990 1 SHOE 53,200
41 90542991 1 PLATE 42,300
42 90544688 4 SCREW 11,000
43 90514216 1 WASHER 11,000
44 582827-00 1 BOLT M5 11,000
45 90514219 1 BOLT 14,200
46 90547708 1 SPRING 11,000
47 90542581 1 PLATE 17,300
48 90542574 1 INSERT 11,000
49 90521871 1 SPRING 11,000
50 90544022 1 SHOE SA 115,700
51 90542573 1 HANDLE 12,500
52 330019-28 2 SCREW 11,000
53 90542992 1 SOLE PLATE 25,000
54 90542577 1 COVER 21,900
55 N501312 1 RATING LABEL B1 11,000
56 330019-16 2 SCREW.TEMP 11,000
57 330019-13 9 SCREW M4 x 19 - T20 11,000
58 562226-35 1 CORDSET B1 45,400
59 330005-01 1 CORD PROTECTOR 14,200
60 329301-00 1 CORD CLAMP 11,000
61 370748 2 SCREW No 6 x 12.7mm 11,000
62 90544008 1 RETAINER 11,000
63 N403227 1 DETENT 11,000
63 N403227 1 DETENT 11,000
