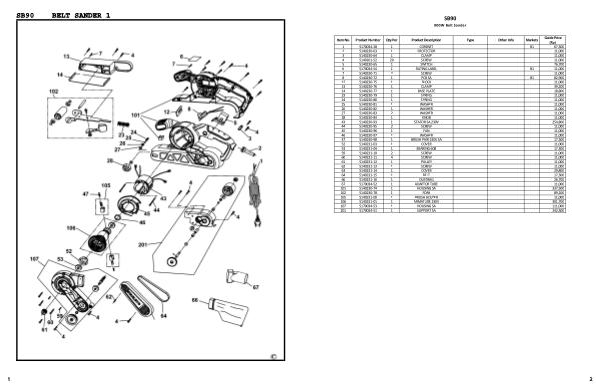

SB90
900W Belt Sander
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 5170034-28 1 CORDSET B1 67,300
2 5140230-63 1 PROTECTOR 11,000
3 5140230-64 1 CLAMP 11,000
4 5140101-52 20 SCREW 11,000
5 5140230-65 1 SWITCH 76,700
6 5170034-54 1 RATING LABEL B1 11,000
7 5140230-71 2 SCREW 11,000
8 5140230-72 1 PCB SA B1 82,900
12 5140230-75 1 BLOCK 11,000
13 5140230-76 1 CLAMP 39,200
14 5140230-77 1 BASE PLATE 18,800
23 5140230-79 1 SPRING 11,000
24 5140230-80 1 SPRING 11,000
25 5140230-81 1 WASHER 11,000
26 5140230-82 1 WASHER 11,000
27 5140230-83 2 WASHER 11,000
28 5140230-84 1 KNOB 11,000
43 5140230-93 1 STATOR SA 230V 254,800
44 5140230-95 2 SCREW 11,000
45 5140230-96 1 FAN 11,000
46 5140230-97 1 WASHER 11,000
47 5140230-98 1 BRUSH PAIR 230V SA 17,300
52 5140231-03 1 COVER 11,000
53 5140231-04 1 BEARING 608 17,300
59 5140231-10 2 SCREW 11,000
60 5140231-11 4 SCREW 11,000
61 5140231-12 1 PULLEY 11,000
62 5140231-13 1 SCREW 11,000
63 5140231-14 1 COVER 29,800
64 5140231-15 1 BELT 17,300
66 5140231-16 1 DUSTBAG 26,700
67 5170034-52 1 ADAPTOR TUBE 11,000
101 5140230-74 1 HOUSING SA 337,500
102 5140230-78 1 FORK 89,200
105 5140231-00 1 BRUSH HOLDER 11,000
106 5140231-01 1 ARMATURE 230V 301,700
107 5170034-53 1 HOUSING SA 111,000
201 5170034-51 1 SUPPORT SA 242,300
