Stanley Spare Part E-Book | Page 49

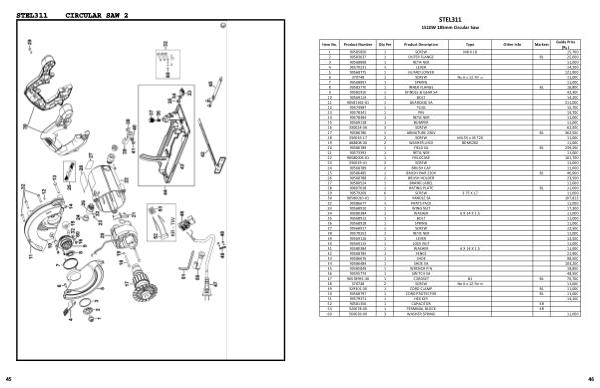

STEL311
1510W 185mm Circular Saw
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 90585850 1 SCREW M8 X 18 15,700
2 90583637 1 OUTER FLANGE B1 25,000
3 90568898 1 RETAINER 11,000
4 90570231 1 LEVER 14,200
5 90568775 1 GUARD LOWER 121,900
6 370748 1 SCREW No 6 x 12.7mm 11,000
7 90568897 1 SPRING 11,000
8 90583770 1 INNER FLANGE B1 18,800
9 90582910 1 SPINDLE & GEAR SA 42,300
10 90569114 1 BOLT 14,200
11 90581362-01 1 GEARCASE SA 211,000
12 90574987 1 PLUG 15,700
13 90578341 1 PIN 15,700
14 90578384 1 RETAINER 11,000
15 90569118 1 BUMPER 11,000
16 330024-06 3 SCREW 62,500
17 90586786 1 ARMATURE 230V B1 362,500
18 330019-17 2 SCREW M4.55 x 45 T20 11,000
19 488808-00 2 WASHER LOCK BDMS200 11,000
20 90586789 1 FIELD SA B1 239,200
21 90573393 1 RETAINER 11,000
22 90580006-01 1 FIELDCASE 101,700
23 330019-41 2 SCREW 11,000
24 90568789 2 BRUSH CAP 11,000
25 90586485 1 BRUSH PAIR 230V B1 46,900
26 90568788 2 BRUSH HOLDER 23,500
27 90580524 1 BRAND LABEL 11,000
28 90607018 1 RATING PLATE B1 11,000
29 90579269 6 SCREW 3.75 X 17 11,000
30 90580010-01 1 HANDLE SA 107,813
32 90586677 1 PARTS PACK 11,000
33 90568910 1 WING NUT 17,300
34 90580384 1 WASHER 6 X 14 X 1.5 11,000
35 90568912 1 BOLT 11,000
36 90568918 1 SPRING 11,000
37 90568917 1 SCREW 12,500
38 90578352 1 RETAINER 11,000
39 90569116 1 LEVER 12,500
40 90569115 1 LOCK NUT 11,000
41 90580384 1 WASHER 6 X 14 X 1.5 11,000
42 90568785 1 FENCE 21,900
43 90586676 1 SHOE 98,500
44 90586484 1 SHOE SA 103,200
45 90585849 1 WRENCH PIN 18,800
46 90595774 1 SWITCH SA 48,500
47 90578995-30 1 CORDSET B1 B1 76,700
48 370748 2 SCREW No 6 x 12.7mm 11,000
49 329301-00 1 CORD CLAMP B1 11,000
50 90568797 1 CORD PROTECTOR B1 11,000
51 90579371 1 HEX KEY 14,200
52 90581356 1 CAPACITOR KR
53 320078-00 1 TERMINAL BLOCK KR
60 569639-00 3 WASHER SPRING 11,000
46
