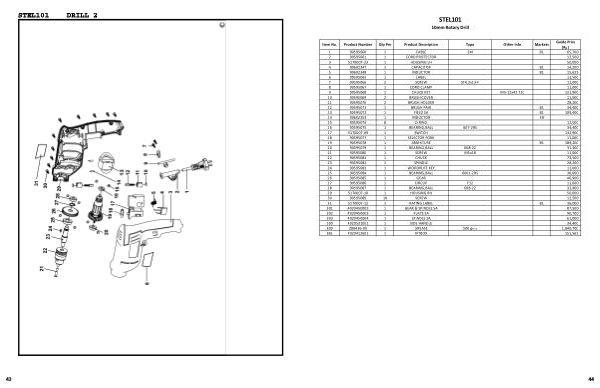

Stanley Spare Part E-Book | Page 47

STEL101
10mm Rotary Drill
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 90595060 1 CABLE 2M B1 65,700
2 90595061 1 CORD PROTECTOR 12,500
3 5170007-23 1 HOUSING LH 50,000
4 90602347 1 CAPACITOR B1 14,200
5 90602348 1 INDUCTOR B1 15,625
6 90595065 1 LABEL 12,500
7 90595066 2 SCREW ST4.2x13-F 11,000
8 90595067 1 CORD CLAMP 11,000
9 90595068 1 CHUCK KEY M3-12x42 T10 121,900
10 90595069 2 BRUSH COVER 11,000
11 90595070 2 BRUSH HOLDER 28,200
12 90595071 1 BRUSH PAIR B1 34,400
13 90595072 1 FIELD SA B1 109,400
14 90602353 1 INDUCTOR KR
15 90595074 8 O RING 12,500
16 90595075 1 BEARING,BALL 607-2RS 34,400
17 5170007-09 1 SWITCH 132,900
18 90595077 1 SELECTOR FORK 11,000
19 90595078 1 ARMATURE B1 189,200
20 90595079 1 BEARING,BALL 608-2Z 31,300
21 90595080 1 SCREW M5x18 11,000
22 90595081 1 CHUCK 73,500
23 90595082 1 SPINDLE 28,200
24 90595083 1 WOODRUFF KEY 11,000
25 90595084 1 BEARING,BALL 6001-2RS 36,000
26 90595085 1 GEAR 46,900
27 90595086 1 CIRCLIP F12 11,000
28 90595087 1 BEARING,BALL 698-2Z 32,900
29 5170007-10 1 HOUSING RH 50,000
30 90595089 10 SCREW 12,500
31 5170007-12 1 RATING LABEL B1 36,000
301 4020450002 1 GEAR & SPINDLE SA 87,500
302 4020450003 1 PLATE SA 90,700
303 4020450004 1 SPINDLE SA 61,000
500 4020531001 1 SIDE HANDLE 34,400
800 286436-00 1 GREASE 500 gms 1,840,700
861 4020412601 1 KITBOX 151,563
