Stanley Spare Part E-Book | Page 33

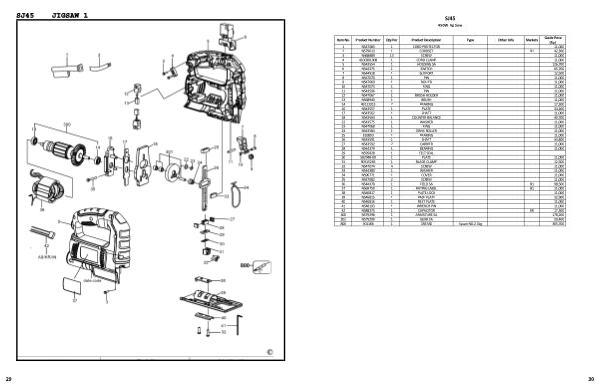

SJ45
450W Jig Saw
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 N547083 1 CORD PROTECTOR 11,000
2 N579613 1 CORDSET B1 42,300
3 N468889 13 SCREW 11,000
4 4100301008 1 CORD CLAMP 11,000
5 N543554 1 HOUSING SA 126,700
6 N544375 1 SWITCH 65,700
7 N544918 1 SUPPORT 12,500
8 N547070 1 PIN 11,000
9 N547069 1 ROLLER 11,000
10 N547073 1 RING 11,000
11 N543596 1 PIN 11,000
12 N547067 1 BRUSH HOLDER 11,000
13 N568940 1 BRUSH 11,000
14 49111013 2 BEARING 17,300
16 N543557 1 PLATE 34,400
17 N543562 1 SHAFT 11,000
18 N543564 1 COUNTER BALANCE 40,700
22 N543575 1 WASHER 11,000
23 N547068 1 RING 11,000
24 N543584 1 DRIVE ROLLER 11,000
25 810893 1 BEARING 11,000
26 N543591 1 SHAFT 43,800
27 N543592 2 CARRIER 11,000
28 N544379 1 BEARING 11,000
29 N595828 1 FELT SEAL
30 582948-00 1 PLATE 11,000
31 90515265 1 BLADE CLAMP 12,500
32 N547074 4 SCREW 11,000
33 N544380 1 WASHER 11,000
34 N596771 1 COVER 11,000
35 N547082 2 SCREW 11,000
36 N544378 1 FIELD SA B1 98,500
37 N569750 1 RATING LABEL B1 11,000
38 N546817 1 PLATE LOCK 11,000
39 N546815 1 BASE PLATE 32,900
40 N546816 1 REST PLATE 11,000
41 N548193 1 WRENCH PIN 11,000
42 N588375 1 CAPACITOR KR 17,300
300 N579298 1 ARMATURE SA 178,200
301 N579299 1 GEAR SA 59,400
800 901186 1 GREASE liyuan NO.2 1kg 365,700
30
