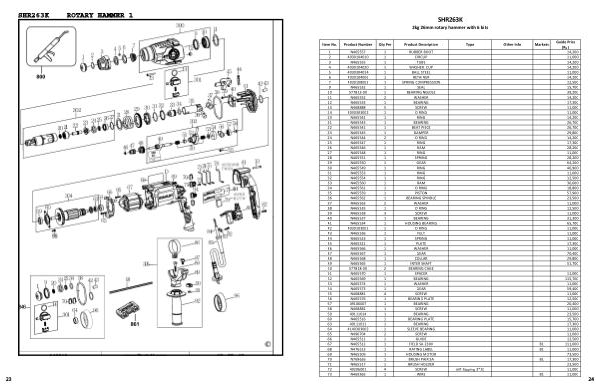

Stanley Spare Part E-Book | Page 27

SHR263K
2kg 26mm rotary hammer with 6 bits
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 N465557 1 RUBBER BOOT 14,200
2 4030104010 1 CIRCLIP 11,000
3 N465555 1 TUBE 14,200
4 4030104020 1 WASHER. CUP 14,200
5 4030304014 1 BALL STEEL 11,000
6 4030104006 1 RETAINER 14,200
7 4030108003 1 SPRING COMPRESSION 12,500
9 N465532 1 SEAL 15,700
10 577813-00 1 BEARING NEEDLE 39,200
11 N465552 2 WASHER 14,200
12 N465533 1 BEARING 17,300
13 N468888 5 SCREW 11,000
14 4030303002 1 O RING 11,000
20 N465542 1 RING 14,200
21 N465543 1 BEARING 26,700
22 N465541 1 BEAT PIECE 26,700
23 N465545 1 DAMPER 29,800
24 N465544 2 O RING 14,200
25 N465547 1 RING 17,300
26 N465546 1 RAM 28,200
27 N465548 1 RING 11,000
28 N465551 1 SPRING 28,200
29 N465550 1 GEAR 64,200
30 N465549 1 RING 46,900
31 N465553 1 RING 11,000
32 N465554 1 RING 12,500
33 N465560 1 RAM 36,000
34 N465561 1 O RING 18,800
35 N465559 1 PISTON 57,900
36 N465562 1 BEARING SPINDLE 23,500
37 N465563 2 WASHER 11,000
38 N465535 1 O RING 12,500
39 N465538 3 SCREW 11,000
40 N465537 1 BEARING 31,300
41 N465534 1 HOUSING BEARING 65,700
42 4030103003 1 O RING 11,000
43 N465536 1 FELT 11,000
44 N465523 1 SPRING 11,000
45 N465521 1 PLATE 17,300
46 N465566 1 WASHER 11,000
47 N465567 1 GEAR 70,400
48 N465568 1 COLLAR 29,800
49 N465565 1 INTER SHAFT 51,700
50 577818-00 2 BEARING CAGE
51 N465570 1 SPACER 11,000
52 N465569 1 BEARING 115,700
53 N465574 1 WASHER 11,000
54 N465573 1 GEAR 59,400
55 N468881 4 SCREW 11,000
56 N465576 1 BEARING PLATE 12,500
57 49106007 1 BEARING 20,400
58 N468882 1 SCREW 11,000
59 49111014 1 BEARING 23,500
60 N465516 1 BEARING PLATE 15,700
63 49111011 1 BEARING 17,300
64 4140303002 1 SLEEVE BEARING 11,000
65 N496704 2 SCREW 11,000
66 N465511 1 GUIDE 12,500
67 N465512 1 FIELD SA 230V B1 111,000
68 N476513 1 RATING LABEL B1 11,000
69 N465509 1 HOUSING MOTOR 73,500
70 N769626 1 BRUSH PAIR SA B1 17,300
71 N465517 1 BRUSH HOLDER 23,500
72 49206001 4 SCREW self-tapping 3*10 11,000
73 N469365 1 WIRE B1 11,000
24
