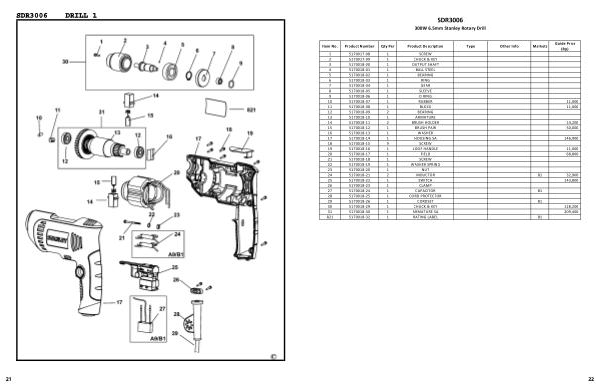

Stanley Spare Part E-Book | Page 25

SDR3006
300W 6.5mm Stanley Rotary Drill
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 5170017-98 1 SCREW
2 5170017-99 1 CHUCK & KEY
3 5170018-00 1 OUTPUT SHAFT
4 5170018-01 1 BALL STEEL
5 5170018-02 1 BEARING
6 5170018-03 1 RING
7 5170018-04 1 GEAR
8 5170018-05 1 SLEEVE
9 5170018-06 1 O RING
10 5170018-07 1 RUBBER 11,000
11 5170018-08 1 BLOCK 11,000
12 5170018-09 2 BEARING
13 5170018-10 1 ARMATURE
14 5170018-11 2 BRUSH HOLDER 14,200
15 5170018-12 1 BRUSH PAIR 50,000
16 5170018-13 1 WASHER
17 5170018-14 1 HOUSING SA 146,900
18 5170018-15 9 SCREW
19 5170018-16 1 LOOP HANDLE 11,000
20 5170018-17 1 FIELD 68,800
21 5170018-18 1 SCREW
22 5170018-19 1 WASHER SPRING
23 5170018-20 1 NUT
24 5170018-21 2 INDUCTOR B1 32,900
25 5170018-22 1 SWITCH 143,800
26 5170018-23 1 CLAMP
27 5170018-24 1 CAPACITOR B1
28 5170018-25 1 CORD PROTECTOR
29 5170018-26 1 CORDSET B1
30 5170018-29 1 CHUCK & KEY 128,200
31 5170018-30 1 ARMATURE SA 209,400
821 5170018-32 1 RATING LABEL B1
22
