Stanley Spare Part E-Book | Page 19

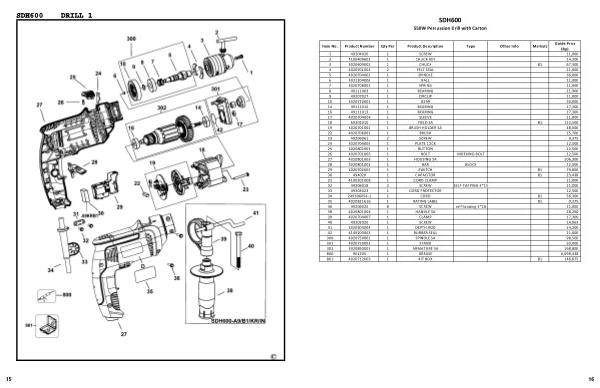

SDH600
550W Percussion Drill with Carton
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 49204020 1 SCREW 11,000
2 4100409602 1 CHUCK KEY 14,200
3 4020409002 1 CHUCK B1 67,300
4 4020701001 2 FELT SEAL 11,000
5 4020704001 1 SPINDLE 36,000
6 4031204006 1 BALL 11,000
7 4020708001 1 SPRING 11,000
8 49111003 1 BEARING 21,900
9 49207027 1 CIRCLIP 11,000
10 4020710001 1 GEAR 50,000
14 49111010 1 BEARING 17,300
16 49111013 1 BEARING 17,300
17 4020704004 1 SLEEVE 11,000
18 60302010 1 FIELD SA B1 112,500
19 4020701002 1 BRUSH HOLDER SA 48,500
22 4020706001 1 BRUSH 15,700
23 49206061 2 SCREW 9,375
24 4020704005 1 PLATE LOCK 12,500
25 4020801001 1 BUTTON 12,500
26 4020701005 1 BOLT INDEXING BOLT 12,500
27 4020801003 1 HOUSING SA 106,300
28 4020801002 1 BAR BLOCK 12,500
29 4020705003 1 SWITCH B1 79,800
30 494020 1 CAPACITOR B1 23,438
31 4100301008 1 CORD CLAMP 11,000
32 49206018 2 SCREW SELF-TAPPING 4*15 11,000
33 49303023 1 CORD PROTECTOR 12,500
34 Z49306054-1 1 CORD B1 56,300
35 4020821616 1 RATING LABEL B1 9,375
36 49206020 8 SCREW self-tapping 4*18 11,000
38 4020801004 1 HANDLE SA 28,200
39 4020704007 1 CLAMP 17,300
40 49202020 1 SCREW 14,063
41 4020504004 1 DEPTH ROD 14,200
42 4149203001 1 RUBBER SEAL 11,000
300 4020750001 1 SPINDLE SA 98,500
301 4020750002 1 STAND 50,000
302 4020850001 1 ARMATURE SA 168,800
800 901205 1 GREASE 6,698,438
861 4020712603 1 KIT BOX B1 146,875
16
