Stanley Spare Part E-Book | Page 15

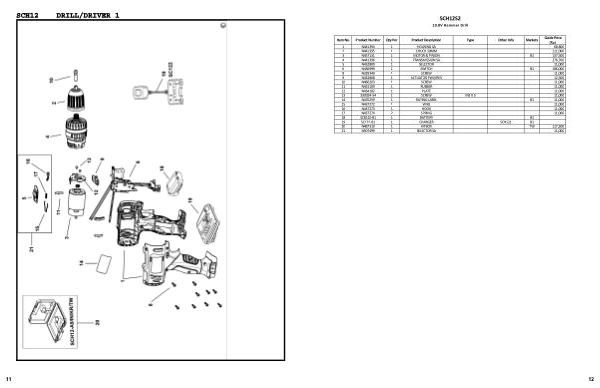

SCH12S2
10.8V Hammer Drill
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 N441394 1 HOUSING SA 68,800
2 N441395 1 CHUCK 10MM 111,000
3 N457131 1 MOTOR & PINION B1 137,500
4 N441396 1 TRANSMISSION SA 276,700
5 N432809 1 SELECTOR 11,000
6 N436999 1 SWITCH B1 186,000
8 N329340 1 SCREW 11,000
9 N432808 1 ACTUATOR FWD/REV 12,500
10 N460203 1 SCREW 11,000
11 N431109 1 RUBBER 11,000
12 N434182 1 PLATE 11,000
13 330024-54 1 SCREW M3 X 5 11,000
14 N470259 1 RATING LABEL B1 11,000
15 N437272 1 WIRE 11,000
16 N437273 1 HOOK 11,000
17 N437274 2 SPRING 11,000
18 SCB12S-B1 1 BATTERY B1
19 SC122-B1 1 CHARGER SCH121 B1
20 N487310 1 KITBOX TW 117,300
21 N507499 1 SELECTOR SA 11,000
12
