Stanley Spare Part E-Book | Page 11

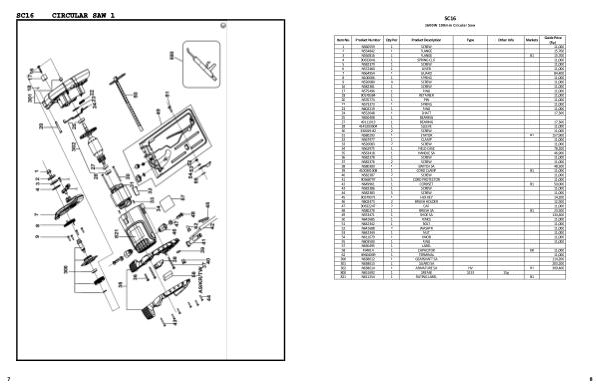

SC16
1600W 190mm Circular Saw
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 N560559 1 SCREW 11,000
2 N554842 1 FLANGE 15,700
3 N550816 1 FLANGE B1 15,700
4 90633041 1 SPRING CLIP 11,000
5 N582370 1 SCREW 11,000
6 N572460 1 LEVER 11,000
7 N564954 1 GUARD 84,400
8 N100006 1 SPRING 11,000
9 N520080 4 SCREW 11,000
16 N582381 1 SCREW 11,000
17 N575496 1 RING 11,000
18 90578384 1 RETAINER 11,000
20 N576774 1 PIN 11,000
22 N573373 1 SPRING 11,000
23 N602219 1 RING 11,000
24 N552648 1 SHAFT 17,300
25 N650408 1 BEARING
27 49111013 1 BEARING 17,300
28 4145203004 1 SLEEVE 11,000
30 330019-82 2 SCREW 11,000
31 N580293 1 STATOR B1 157,900
32 N567977 1 CLAMP 11,000
33 N520083 2 SCREW 11,000
34 N562975 1 FIELD CASE 78,200
35 N563418 1 HANDLE SA 46,900
36 N582378 1 SCREW 11,000
37 N582376 2 SCREW 11,000
38 N580300 1 SWITCH SA 48,500
39 4100301008 1 CORD CLAMP B1 11,000
40 N582387 2 SCREW 11,000
41 90568797 1 CORD PROTECTOR 11,000
42 N649961 1 CORDSET B1 50,000
43 N582386 1 SCREW 11,000
44 N582383 5 SCREW 11,000
45 90579371 1 HEX KEY 14,200
46 N602473 2 BRUSH HOLDER 12,500
47 90632247 2 CAP 11,000
48 N580276 1 BRUSH SA B1 23,500
49 N553471 1 SHOE SA 134,400
50 N641685 1 FENCE 11,000
51 N642342 1 BOLT 11,000
52 N641688 2 WASHER 11,000
53 N642344 1 NUT 11,000
54 N611679 1 KNOB 11,000
55 N603500 1 RING 11,000
57 N630495 1 LABEL
58 494014 1 CAPACITOR KR 11,000
62 49604009 1 TERMINAL 11,000
300 N638612 1 GEARSHAFT SA 114,200
301 N638613 1 GUARD SA 203,200
302 N638614 1 ARMATURE SA HV B1 309,400
800 N651692 1 GREASE G133 15g
821 N611254 1 RATING LABEL B1
