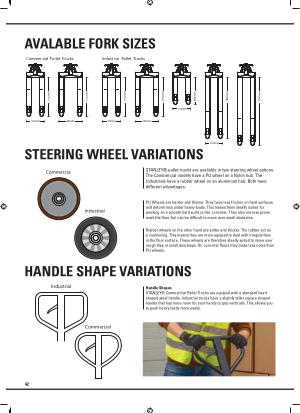

STANLEY Material Handling Catalog (wef 1-10-24) | Page 42

AVALABLE FORK SIZES

Commer cial Pa llet Trucks Indust rial Pallet Trucks
1150mm
1150mm
1150mm
1150mm
800mm
1800mm
2000mm
550mm
550mm
685mm
550mm
685mm

STEERING WHEEL VARIATIONS

550mm
Commercial
STANLEY ® pallet trucks are available in two steering wheel options . The Commercial models have a PU wheel on a Nylon hub . The Industrials have a rubber wheel on an aluminium hub . Both have different advantages .
Industrial
PU Wheels are harder and thinner . They have less friction on hard surfaces and deform less under heavy loads . This makes them ideally suited for working on a smooth hard surface like concrete . They also are less prone mark the floor , but can be difficult to move over small obstacles .

HANDLE SHAPE VARIATIONS

Industrial
Rubber wheels on the other hand are softer and thicker . The rubber act as a cushioning . This means they are more equiped to deal with irregularities in the floor surface . These wheels are therefore ideally suited to move over rough tiles or small doorsteps . On concrete floors they make less noise than PU wheels .
Handle Shapes STANLEY ® Commercial Pallet Trucks are equiped with a standard heart shaped steel handle . Industrial trucks have a slightly taller square shaped handle that has more room for your hands to grip vertically . This allows you to push heavy loads more easily .
Commercial
42
