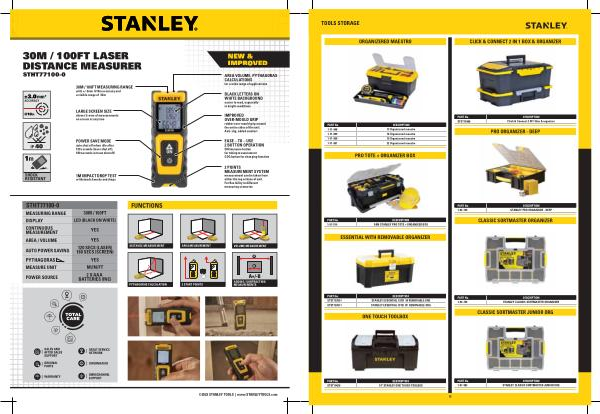

30M / 100FT LASER DISTANCE MEASURER
STHT77100-0
30M / 100FT MEASURING RANGE with +/ -3mm @ 10m accuracy and a visible range of 30m
LARGE SCREEN SIZE shows 3 rows of measurements on screen at any time
NEW & IMPROVED
AREA VOLUME , PYTHAGORAS CALCULATIONS for a wide range of applications
BLACK LETTERS ON WHITE BACKGROUND easier to read , especially in bright conditions
IMPROVED OVER-MOULD GRIP rubber over-mould grip around the entire sides of the unit . Anti-slip , added comfort
1m
IP 40
SHOCK RESISTANT
POWER SAVE MODE auto shut off when idle after 120 seconds ( laser shut off ), 180 seconds ( screen shut off )
1M IMPACT DROP TEST withstands knocks and drops
EASE – TO – USE 2 BUTTON OPERATION
ON / measure button for taking measurement COG button for changing function
2 POINTS MEASUREMENT SYSTEM measurement can be taken from either the top or base of unit . For flexibility in different measuring scenarios
STHT77100-0
MEASURING RANGE DISPLAY CONTINUOUS MEASUREMENT
AREA / VOLUME
AUTO POWER SAVING
PYTHAGORAS MEASURE UNIT
POWER SOURCE
30M / 100FT LED ( BLACK ON WHITE )
YES
YES 120 SECS ( LASER ) 180 SECS ( SCREEN )
YES M / IN / FT 2 X AAA BATTERIES ( INC )
FUNCTIONS
DISTANCE MEASUREMENT AREA MEASUREMENT VOLUME MEASUREMENT
b
PYTHAGORAS CALCULATION
a
2 START POINTS
A
B
A +/ -B
ADDING / SUBTRACTING MEASUREMENTS
SALES AND AFTER SALES SUPPORT
ORIGINAL PARTS
WARRANTY
GREAT SERVICE NETWORK
INFORMATION
OMNICHANNEL SUPPORT
© 2022 STANLEY TOOLS | www . STANLEYTOOLS . com
