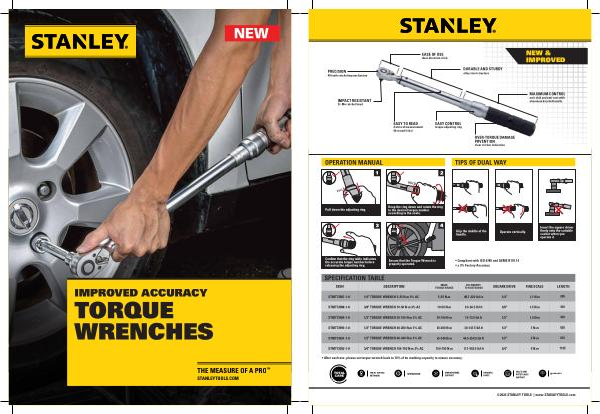

STANLEY® Hand Tools Catalogue - ASIA 2022/2023 STANLEY® Hand Tools Catalogue - ASIA 2022/2023 | Page 29

EASE OF USE dual-direction click
NEW & IMPROVED
PRECISION
48 tooth ratcheting mechanism
DURABLE AND STURDY alloy steel structure
IMPACT RESISTANT
Cr-Mo ratchet head
MAXIMUM CONTROL anti-skid and anti-rust with aluminum knurled handle
EASY TO READ
2 units of measurement ( N · m and ft · lbs )
EASY CONTROL torque adjusting ring
OVER-TORQUE DAMAGE PRVENTION clear clicker indication
OPERATION MANUAL TIPS OF DUAL WAY
Pull down the adjusting ring .
Keep the ring down and rotate the ring to the desired torque number according to the scale .
Grip the middle of the handle .
Operate vertically .
Insert the square driver firmly onto the suitable socket when you operate it .
Confirm that the ring table indicates the accurate torque number before releasing the adjusting ring .
Ensure that the Torque Wrench is properly operated .
• Compliant with ISO 6789 and ASME B107.14
• ± 3 % Factory Accuracy
SPECIFICATION TABLE
MAIN TORQUE RANGE
SECONDARY TORQUE RANGE
SKU # DESCRIPTION SQUARE DRIVE FINE SCALE LENGTH
STMT73587-1-8
1 / 4 " TORQUE WRENCH 5-25 N · m 3 % AC
5-25 N · m
48.7-220 lbf · in
1 / 4 "
0.1 N · m
245
STMT73588-1-8
3 / 8 " TORQUE WRENCH 10-50 N · m 3 % AC
10-50 N · m
9.5-36.5 lbf · ft
3 / 8 "
0.5 N · m
410
STMT73589-1-8
1 / 2 " TORQUE WRENCH 20-100 N · m 3 % AC
20-100 N · m
15-73.5 lbf · ft
1 / 2 "
0.5 N · m
410
STMT73590-1-8
1 / 2 " TORQUE WRENCH 40-200 N · m 3 % AC
40-200 N · m
30-147.5 lbf · ft
1 / 2 "
1 N · m
520
STMT73591-1-8
1 / 2 " TORQUE WRENCH 60-340 N · m 3 % AC
60-340 N · m
44.5-250.5 lbf · ft
1 / 2 "
2 N · m
610
STMT73592-1-8
3 / 4 " TORQUE WRENCH 150-750 N · m 3 % AC
150-750 N · m
111-553.5 lbf · ft
3 / 4 "
5 N · m
1125
• After each use , please set torque wrench back to 10 % of its working capacity to ensure accuracy .
