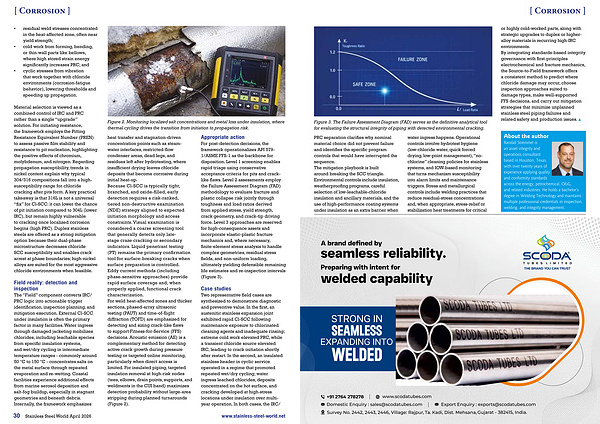

• residual weld stresses concentrated in the heat-affected zone, often near yield strength;
• cold work from forming, bending, or thin-wall parts like bellows, where high stored strain energy significantly increases PRC; and
• cyclic stresses from vibration that work together with chloride environments( corrosion-fatigue behavior), lowering thresholds and speeding up propagation.
Material selection is viewed as a combined control of IRC and PRC rather than a single“ upgrade” solution. For initiating resistance, the framework employs the Pitting Resistance Equivalent Number( PREN) to assess passive film stability and resistance to pit nucleation, highlighting the positive effects of chromium, molybdenum, and nitrogen. Regarding propagation susceptibility, trends in nickel content explain why typical 304 / 316 compositions fall into a highsusceptibility range for chloride cracking after pits form. A key practical takeaway is that 316L is not a universal“ fix” for Cl-SCC: it can lower the chance of pit initiation compared to 304L( lower IRC), but remain highly vulnerable to cracking once localized corrosion begins( high PRC). Duplex stainless steels are offered as a strong mitigation option because their dual-phase microstructure decreases chloride SCC susceptibility and enables crack arrest at phase boundaries; high-nickel alloys are suited for the most aggressive chloride environments when feasible.
Field reality: detection and inspection The“ Field” component converts IRC / PRC logic into actionable trigger identification, inspection planning, and mitigation execution. External Cl-SCC under insulation is often the primary factor in many facilities. Water ingress through damaged jacketing mobilizes chlorides, including leachable species from specific insulation systems, and wet / dry cycling in intermediate temperature ranges- commonly around 50 ° C to 150 ° C- concentrates salts on the metal surface through repeated evaporation and re-wetting. Coastal facilities experience additional effects from marine aerosol deposition and salt-fog buildup, especially in stagnant geometries and beneath debris. Internally, the framework emphasizes
Figure 2. Monitoring localized salt concentrations and metal loss under insulation, where thermal cycling drives the transition from initiation to propagation risk.
heat transfer and stagnation-driven concentration points such as steamwater interfaces, restricted-flow condenser areas, dead legs, and residues left after hydrotesting, where insufficient drying leaves chloride deposits that become corrosive during initial heat-up. Because Cl-SCC is typically tight, branched, and oxide-filled, early detection requires a risk-ranked, tiered non-destructive examination( NDE) strategy aligned to expected initiation morphology and access constraints. Visual examination is considered a coarse screening tool that generally detects only latestage craze cracking or secondary indicators. Liquid penetrant testing( PT) remains the primary confirmation tool for surface-breaking cracks when surface preparation is controlled. Eddy current methods( including phase-sensitive approaches) provide rapid surface coverage and, when properly applied, functional crack characterization. For weld heat-affected zones and thicker sections, phased-array ultrasonic testing( PAUT) and time-of-flight diffraction( TOFD) are emphasized for detecting and sizing crack-like flaws to support Fitness-for-Service( FFS) decisions. Acoustic emission( AE) is a complementary method for detecting active crack growth during pressure testing or targeted online monitoring, particularly when direct access is limited. For insulated piping, targeted insulation removal at high-risk nodes( tees, elbows, drain points, supports, and weldments in the CUI band) maximizes detection probability without large-area stripping during planned turnarounds( Figure 2).
Appropriate action For post-detection decisions, the framework operationalizes API 579- 1 / ASME FFS-1 as the backbone for disposition. Level 1 screening enables rapid triage using conservative acceptance criteria for pits and cracklike flaws. Level 2 assessments employ the Failure Assessment Diagram( FAD) methodology to evaluate fracture and plastic collapse risk jointly through toughness and load ratios derived from applied stress, yield strength, crack geometry, and crack-tip driving force. Level 3 approaches are reserved for high-consequence assets and incorporate elastic-plastic fracture mechanics and, where necessary, finite-element stress analysis to handle complex geometries, residual stress fields, and non-uniform loading, ultimately yielding defensible remaining life estimates and re-inspection intervals( Figure 3).
Case studies Two representative field cases are synthesized to demonstrate diagnostic and preventive value. In the first, an austenitic stainless expansion joint exhibited rapid Cl-SCC following maintenance exposure to chlorinated cleaning agents and inadequate rinsing; extreme cold work elevated PRC, while a transient chloride source elevated IRC, leading to crack initiation shortly after restart. In the second, an insulated stainless header in cyclic service operated in a regime that promoted repeated wet / dry cycling; water ingress leached chlorides, deposits concentrated on the hot surface, and cracking developed at high-stress locations under insulation over multiyear operation. In both cases, the IRC /
