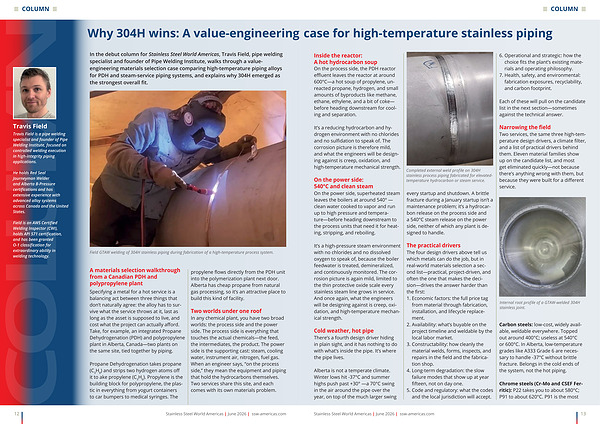

• COLUMN •
case for high-temperature stainless piping
Inside the reactor: A hot hydrocarbon soup On the process side, the PDH reactor effluent leaves the reactor at around 600 ° C— a hot soup of propylene, unreacted propane, hydrogen, and small amounts of byproducts like methane, ethane, ethylene, and a bit of coke— before heading downstream for cooling and separation.
It’ s a reducing hydrocarbon and hydrogen environment with no chlorides and no sulfidation to speak of. The corrosion picture is therefore mild, and what the engineers will be designing against is creep, oxidation, and high-temperature mechanical strength.
On the power side: 540 ° C and clean steam On the power side, superheated steam leaves the boilers at around 540 °— clean water cooked to vapor and run up to high pressure and temperature— before heading downstream to the process units that need it for heating, stripping, and reboiling.
It’ s a high-pressure steam environment with no chlorides and no dissolved oxygen to speak of, because the boiler feedwater is treated, demineralized, and continuously monitored. The corrosion picture is again mild, limited to the thin protective oxide scale every stainless steam line grows in service. And once again, what the engineers will be designing against is creep, oxidation, and high-temperature mechanical strength.
Cold weather, hot pipe There’ s a fourth design driver hiding in plain sight, and it has nothing to do with what’ s inside the pipe. It’ s where the pipe lives.
Alberta is not a temperate climate. Winter lows hit-37 ° C and summer highs push past + 30 °— a 70 ° C swing in the air around the pipe over the year, on top of the much larger swing
Completed external weld profile on 304H stainless process piping fabricated for elevatedtemperature hydrocarbon or steam service.
every startup and shutdown. A brittle fracture during a January startup isn’ t a maintenance problem; it’ s a hydrocarbon release on the process side and a 540 ° C steam release on the power side, neither of which any plant is designed to handle.
The practical drivers The four design drivers above tell us which metals can do the job, but in real-world materials selection a second list— practical, project-driven, and often the one that makes the decision— drives the answer harder than the first: 1. Economic factors: the full price tag from material through fabrication, installation, and lifecycle replacement.
2. Availability: what’ s buyable on the project timeline and weldable by the local labor market.
3. Constructability: how cleanly the material welds, forms, inspects, and repairs in the field and the fabrication shop.
4. Long-term degradation: the slow failure modes that show up at year fifteen, not on day one.
5. Code and regulatory: what the codes and the local jurisdiction will accept.
6. Operational and strategic: how the choice fits the plant’ s existing materials and operating philosophy.
7. Health, safety, and environmental: fabrication exposures, recyclability, and carbon footprint.
Each of these will pull on the candidate list in the next section— sometimes against the technical answer.
Narrowing the field Two services, the same three high-temperature design drivers, a climate filter, and a list of practical drivers behind them. Eleven material families show up on the candidate list, and most get eliminated quickly— not because there’ s anything wrong with them, but because they were built for a different service.
Internal root profile of a GTAW-welded 304H stainless joint.
Carbon steels: low-cost, widely available, weldable everywhere. Topped out around 400 ° C; useless at 540 ° C or 600 ° C. In Alberta, low-temperature grades like A333 Grade 6 are necessary to handle-37 ° C without brittle fracture. Belongs in the cold ends of the system, not the hot piping.
Chrome steels( Cr-Mo and CSEF Ferritic): P22 takes you to about 580 ° C; P91 to about 620 ° C. P91 is the most
Stainless Steel World Americas | June 2026 | ssw-americas. com 13
