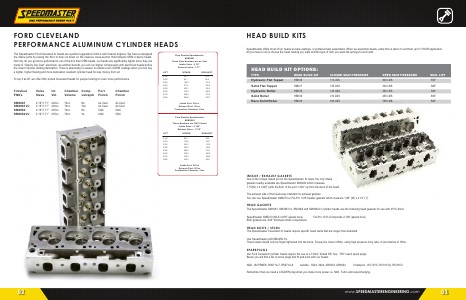

FORD CLEVELAND PERFORMANCE ALUMINUM CYLINDER HEADS
The Speedmaster Ford Cleveland 3v heads are a perfect upgrade for both 2 and 4 barrel engines. We have re-designed the intake ports by raising the floor to help cut down on the massive cross-section that hampers OEM 4 barrel heads. Not only do you get more performance out of the box than OEM heads, our heads are significantly lighter since they are made of“ Gravity Die Cast” aluminum. As another benefit, you can run higher compression with aluminum heads before the onset of power robbing detonation. There is absolutely no reason to rebuild a set of OEM castings when you can buy a lighter, higher flowing and more detonation resistant cylinder head for less money from us!
To top it all off, we offer CNC ported Cleveland heads for people looking for even more performance.
Finished PN #’ s
SM3061 SM3061VJ SM3062 SM3062VJ
Valve Sizes
2.19”/ 1.71” 2.19”/ 1.71” 2.19”/ 1.71” 2.19”/ 1.71”
Int. Vol.
220cc. 220cc. 235cc. 235cc.
Chamber Volume
74cc. 74cc. 78cc. 78cc.
Comp. valvejob
No Yes No Ye
Port Finish
As Cast As Cast CNC CNC
Chamber Finish
As Cast As Cast CNC CNC
Flow Results Speedmaster # SM3061 These Flow Numbers are as Cast Intake Valve- 2.19” Exhaust Valve- 1.71”
LIFT |
INTAKE |
EXHAUST |
0.100 |
45.1 |
41.3 |
0.200 |
92.1 |
86.4 |
0.300 |
152.0 |
131.0 |
0.400 |
211.4 |
162.9 |
0.500 |
252.1 |
180.0 |
0.600 |
275.4 |
189.2 |
0.700 |
290.6 |
191.8 |
0.800 |
284.9 |
193.7 |
Intake Port: 210cc Exhaust Port: 110cc Combustion Chamber: 74cc
Flow Results Speedmaster # SM3062 These Numbers are CNC Ported Intake Valve- 2.190” Exhaust Valve- 1.710”
LIFT INTAKE EXHAUST
0.100 |
68.4 |
58.4 |
0.200 |
140.8 |
106.1 |
0.300 |
200.3 |
147.4 |
0.400 |
253.9 |
185.4 |
0.500 |
296.2 |
216.1 |
0.600 |
320.6 |
240.5 |
0.700 |
339.2 |
256.9 |
0.800 |
350.3 |
265.1 |
Intake Port: 233cc Exhaust Port: 120cc Combustion Chamber: 74cc
