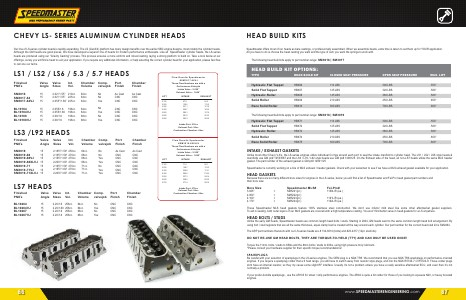

HEAD BUILD KITS
Speedmaster offers most of our heads as bare castings, or professionally assembled. When we assemble heads, extra time is taken to set them up for YOUR application. All you have to do is choose the head casting you want and the type of cam you want the springs to work with.
The following head build kits apply to part number range: SM3016 | SM3017
HEAD BUILD KIT OPTIONS:
TYPE HEAD BUILD KIT CLOSED SEAT PRESSURE OPEN SEAT PRESSURE MAX. LIFT
Hydraulic Flat Tappet Solid Flat Tappet Hydraulic Roller Solid Roller Race Solid Roller |
HBK06 HBK07 HBK08 HBK09 HBK10 |
110 LBS 125 LBS 145 LBS 210 LBS 300 LBS |
300 LBS 320 LBS 360 LBS 450 LBS 700 LBS |
. 550”. 580”. 580”. 650”. 800” |
The following head build kits apply to part number range: SM3018 | SM3019 |
|
Hydraulic Flat Tappet
Solid Flat Tappet
Hydraulic Roller
Solid Roller
Race Solid Roller
|
HBK71 HBK72 HBK73 HBK74 HBK75 |
110 LBS 125 LBS 145 LBS 210 LBS 300 LBS |
300 LBS 320 LBS 360 LBS 450 LBS 700 LBS
. 550”. 580”. 580”. 650”. 800”
INTAKE / EXHAUST GASKETS
Unlike most other Chevy V-8’ s, the LS-series engines utilize individual O-rings around each port to seal the intake manifold to cylinder head. The LS1 / LS2 / LS6 style heads & manifolds use GM pn # 12533587 and the LS3 / L76 / L92 style heads use GM pn # 1290125. On the Exhaust side of the head, all non-LS7 heads utilize the same MLS header gasket. The part number of the exhaust gasket is GM pn # 12901125
Speedmaster is currently working on a line of MLS exhaust / header gaskets. Check with your salesman to see if we have a MLS exhaust gasket available for your application.
HEAD GASKETS
Because there are so many different bore sizes for engines in the LS-series, below you will find a list of Speedmaster and Fel-Pro head gasket part numbers and their bore size:
Bore Size |
|
Speedmaster MLS # |
Fel-Pro # |
3.945” |
= |
SM5221( pr.) |
1160L / R( ea.) |
4.050” |
= |
SM5222( pr.) |
|
4.100” |
= |
SM5223( pr.) |
1161L / R( ea.) |
4.170” |
= |
SM5224( pr.) |
1162L / R( ea.) |
These Speedmaster MLS head gaskets feature 100 % stainless steel construction. We don’ t use inferior mild steel like some other aftermarket gasket suppliers. To aid in sealing, both outer layers of our MLS gaskets are covered with a high temperature coating. You won’ t find better value in head gaskets for a LS anywhere.
HEAD BOLTS / STUDS
Unlike the early GM heads, Speedmaster heads use common length head bolts / studs. Starting in 2004, GM heads went to the same common length head bolt arrangement. By using bolt / stud registers that are all the same thickness, equal clamp load is created all the way around each cylinder. Our part number for the correct head stud kit is SM2464.
The ARP part numbers that work with our LS-series heads are # 134-3610( bolts) and # 23-4317( 12pt. stud kits) DO NOT RE-USE GM HEAD BOLTS, THEY ARE TORQUE-TO-YIELD( TTY) AND CAN ONLY BE USED ONCE!
Torque the 11mm. bolts / studs to 65lbs and the 8mm bolts / studs to 20lbs. using high pressure moly lubricant. * Please consult your hardware supplier for their specific torque recommendations!
SPARKPLUGS Be careful with your selection of sparkplugs in the LS-series engines. The OEM plug is a NGK TR5. We recommend that you use NGK TR6 sparkplugs on performance oriented engines. If you require a sparkplug colder that a 6 heat range, you will have to switch away from resistor style plugs, and into the NGK R5724-7 or R5724-8. These colder plugs dont have an internal resistor, so they my cause some slight RF interface. Usually it’ s not a problem unless you have a really sensitive aftermarket ECU, and even then it’ s not normally a problem.
If your prefer Autolite sparkplugs, use the AR103 for street / strip performance engines. The AR94 is quite a bit colder for those of you looking to squeeze N20, or heavy boosted engines. www. SPEEDMASTERENGINEERING. com
