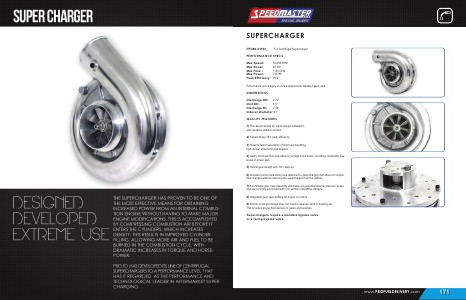

SUPERCHARGER
PFD86-01193 _
P-2 Centrifugal Supercharger PERFORMANCE SPECS
Max Speed: |
52,000 RPM |
Max Boost: |
22 PSI |
Max Flow: |
1150 CFM |
Max Power: |
775 HP |
Peak Efficiency: 78 % |
Performance specs apply to units equipped with standard gear case. DIMENSIONS
Discharge OD: |
2.75” |
Inlet OD: |
3.5” |
Discharge ID: |
2.38” |
Inducer Diameter: 3.1” |
QUALITY FEATURES
1) This design allows for supercharger installation and operation without oil lines
2) Extraordinary 78 % peak efficiency
3) Ideal for latest generation of improved breathing, high-power street and strip engines
4) Vastly improved flow and efficiency at high boost levels, providing completely new levels of power gain
5) Helical gear design with 3.6:1 step-up
6) Includes remote fluid drain hose( attached to supercharger) that allows for simple fluid changes without removing the supercharger from the vehicle
7) A ventilated gear case assembly eliminates any potential internal pressure issues that are currently associated with non-vented competitive designs
8) Integrated gear case baffling for proper oil control
9) Simple oil slinger design does not require separate shaft or bearing set. This provides proper fluid delivery to gears and bearings
Superchargers require a standard bypass valve or a racing bypass valve. www. PROFUELDELIVERY. com
