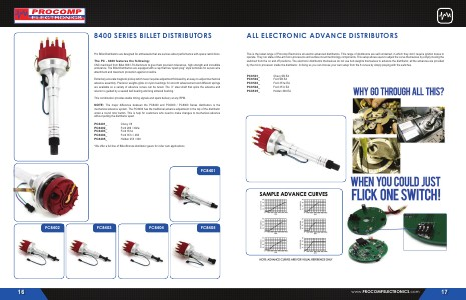

8400 SERIES BILLET DISTRIBUTORS
Pro Billet Distributors are designed for enthusiasts that are serious about performance with space restrictions.
The PC- 8400 features the following: CNC machined from Billet 6061-T6 Aluminum to give them precision tolerances, high strength and incredible endurance. The Billet Distributors are equipped with a cap that has“ spark plug” style terminals for secure wire attachment and maximum protection against crossfire.
Extremely accurate magnetic pickup which never requires adjustment followed by an easy-to-adjust mechanical advance assembly. Precision weights glide on nylon bushings for smooth advancement and different springs are available so a variety of advance curves can be tuned. The ½” steel shaft that spins the advance and reluctor is guided by a sealed ball bearing and long sintered bushing.
This combination provides stable timing signals and spark delivery at any RPM.
NOTE: The major difference between the PC8400 and PC9000 / PC8000 Series distributors is the mechanical advance system. The PC8400 has the traditional advance adjustment in the top of the distributor under a round rotor button. This is help for customers who need to make changes to mechanical advance without pulling the distributor apart.
PC8401 _ |
Chevy V8 |
PC8402 _ |
Ford 289 / 302w |
PC8403 _ |
Ford 351w |
PC8404 _ |
Ford 351c / 460 |
PC8405 _ |
Holden 253 / 308 |
* We offer a full line of Billet Bronze distributor gears for roller cam applications
PC8401
PC8402 |
PC8403 |
PC8404 |
PC8405 |
