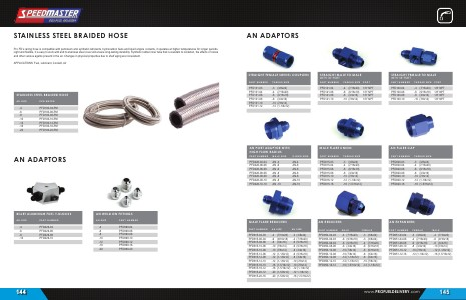

Speedmaster Master Edition One | Page 145

145

AN ADAPTORS

STRAIGHT FEMALE SWIVEL COUPLERS
PART NUMBER THREAD SIZE
PFD131-03
-3
( 3 / 8x24)
PFD131-04
-4
( 7 / 16x20)
PFD131-06
-6
( 9 / 16x18)
PFD131-08
-8
( 3 / 4x16)
PFD131-10
-10( 7 / 8x14)
PFD131-12
-12( 1-1 / 6x12)
STRAIGHT MALE TO MALE WITH 1 / 8” PORT
STRAIGHT FEMALE TO MALE WITH 1 / 8” PORT
PART NUMBER THREAD SIZE PORT PART NUMBER THREAD SIZE PORT
PFD141-04
-4
( 7 / 16x20)
1 / 8” NPT
PFD141-06
-6
( 9 / 16x18)
1 / 8” NPT
PFD141-08
-8
( 3 / 4x16)
1 / 8” NPT
PFD141-10
-10( 7 / 8x14)
1 / 8” NPT
PFD140-04
-4
( 7 / 16x20)
1 / 8” NPT
PFD140-06
-6
( 9 / 16x18)
1 / 8” NPT
PFD140-08
-8
( 3 / 4x16)
1 / 8” NPT
PFD140-10
-10( 7 / 8x14)
1 / 8” NPT
AN PORT ADAPTOR WITH HIGH FLOW RADIUS
PART NUMBER MALE SIDE O-RING SIDE
PFD428-04-04
AN-4
AN-4
PFD428-06-06
AN-6
AN-6
PFD428-06-08
AN-6
AN-6
PFD428-08-06
AN-8
AN-8
PFD428-08-08
AN-8
AN-8
PFD428-08-10
AN-8
AN-10
PFD428-10-10
AN-10
AN-10
MALE FLARE UNION
AN FLARE CAP
PART NUMBER THREAD SIZE PART NUMBER THREAD SIZE
PFD815-03
-3
( 3 / 8x24)
PFD815-04
-4
( 7 / 16x20)
PFD815-06
-6
( 9 / 16x18)
PFD815-08
-8
( 3 / 4x16)
PFD815-10
-10( 7 / 8x14)
PFD816-12
-12( 1-1 / 6x12)
PFD815-16
-16( 1-5 / 16x12)
PFD820-03
-3
( 3 / 8x24)
PFD820-04
-4
( 7 / 16x20)
PFD820-06
-6
( 9 / 16x18)
PFD820-08
-8
( 3 / 4x16)
PFD820-10
-10( 7 / 8x14)
PFD820-12
-12( 1-1 / 6x12)
PFD820-16
-16( 1-5 / 16x12)
MALE FLARE REDUCERS AN REDUCERS AN EXPANDERS
PART NUMBER AN SIZE AN SIZE PART NUMBER MALE FEMALE PART NUMBER FEMALE MALE
PFD815-04-03
-4
( 7 / 16x20)
-3( 3 / 8x24)
PFD815-06-04
-6
( 9 / 16x18)
-4( 7 / 16x20)
PFD815-08-06
-8
( 3 / 4x16)
-6( 9 / 16x18)
PFD815-10-06
-10( 7 / 8x14)
-6( 9 / 16x18)
PFD815-10-08
-10( 7 / 8x14)
-8( 3 / 4x16)
PFD815-12-06
-12( 1-1 / 6x12)
-6( 9 / 16x18)
PFD815-12-08
-12( 1-1 / 6x12)
-8( 3 / 4x16)
PFD815-12-10
-12( 1-1 / 6x12)
-10( 7 / 8x14)
PFD815-16-10
-16( 1-5 / 16x12)-10( 7 / 8x14)
PFD815-16-12
-16( 1-5 / 16x12)-12( 1-1 / 6x12)
PFD815-20-12
-20( 1-5 / 8x12)
-12 1-1 / 6x12)
PFD815-20-16
-20( 1-5 / 8x12)
-16( 1-5 / 16x12)
PFD950-04-03 PFD950-06-03 PFD950-06-04 PFD950-08-06 PFD950-10-06 PFD950-10-08 PFD950-12-08 PFD950-12-10 PFD950-16-12
-4( 7 / 16x20)-6( 9 / 16x18)-6( 9 / 16x18)-8( 3 / 4x16)-10( 7 / 8x14)-10( 7 / 8x14)-12( 1-1 / 6x12)-12( 1-1 / 6x12)-16( 1-5 / 16x12)
-3( 3 / 8x24)-3( 3 / 8x24)-4( 7 / 16x20)-6( 9 / 16x18)-6( 9 / 16x18)-8( 3 / 4x16)-8( 3 / 4x16)-10( 7 / 8x14)-12( 1-1 / 6x12)
PFD951-03-04 PFD951-04-06 PFD951-06-08 PFD951-08-10 PFD951-10-12 PFD951-12-16
-3( 3 / 8x24)-4( 7 / 16x20)-6( 9 / 16x18)-8( 3 / 4x16)-10( 7 / 8x14)-12( 1-1 / 6x12)
-4( 7 / 16x20)-6( 9 / 16x18)-8( 3 / 4x16)-10( 7 / 8x14)-12( 1-1 / 6x12)-16( 1-5 / 16x12)
