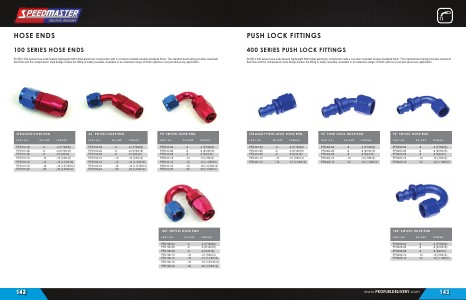

Speedmaster Master Edition One | Page 143

400 SERIES PUSH LOCK FITTINGS
143

PUSH LOCK FITTINGS

400 SERIES PUSH LOCK FITTINGS

ProFD’ s 400 series hose ends feature lightweight 6061 billet aluminum construction with a corrosion resistant double anodized finish. The mandrel bent tubing provides maximum fluid flow and the compression style design means the fitting is totally reusable. Available in an extensive range of finish options to suit just about any application.
STRAIGHT PUSH LOCK HOSE END 45˚ PUSH LOCK HOSE END 90˚ SWIVEL HOSE END
PART NO. AN SIZE THREAD PART NO. AN SIZE THREAD PART NO. AN SIZE THREAD
PFD401-04
-4
-4( 7 / 16X20)
PFD401-06
-6
-6( 9 / 16X18)
PFD401-08
-8
-8( 3 / 4X16)
PFD401-10
-10
-10( 7 / 8X14)
PFD401-12
-12
-12( 1-1 / 6X12)
PFD402-04
-4
-4( 7 / 16X20)
PFD402-06
-6
-6( 9 / 16X18)
PFD402-08
-8
-8( 3 / 4X16)
PFD402-10
-10
-10( 7 / 8X14)
PFD402-12
-12
-12( 1-1 / 6X12)
PFD403-04
-4
-4( 7 / 16X20)
PFD403-06
-6
-6( 9 / 16X18)
PFD403-08
-8
-8( 3 / 4X16)
PFD403-10
-10
-10( 7 / 8X14)
PFD403-12
-12
-12( 1-1 / 6X12)
180˚ SWIVEL HOSE END
PART NO. AN SIZE THREAD
PFD406-04
-4
-4( 7 / 16X20)
PFD406-06
-6
-6( 9 / 16X18)
PFD406-08
-8
-8( 3 / 4X16)
PFD406-10
-10
-10( 7 / 8X14)
PFD406-12
-12
-12( 1-1 / 6X12)
