FLOW CHEMISTRY
to keep the reactor at the required low temperature . In fact , the energy consumption for this process amounted to 130 MWh / year , with
CO 2 emissions reaching 75 tonnes .

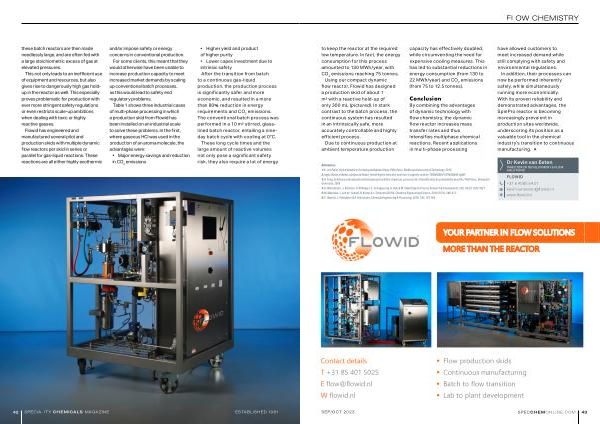

Using our compact dynamic flow reactor , Flowid has designed a production skid of about 1 m ³ with a reactive hold-up of only 300 mL ( pictured ). In stark contrast to the batch process , the continuous system has resulted in an intrinsically safe , more accurately controllable and highly efficient process .
Due to continuous production at ambient temperature production
capacity has effectively doubled , while circumventing the need for expensive cooling measures . This has led to substantial reductions in energy consumption ( from 130 to 22 MWh / year ) and CO 2 emissions ( from 75 to 12.5 tonnes ).
Conclusion
By combining the advantages of dynamic technology with flow chemistry , the dynamic flow reactor increases mass transfer rates and thus intensifies multiphase chemical reactions . Recent applications in multi-phase processing
have allowed customers to meet increased demand while still complying with safety and environmental regulations .
In addition , their processes can now be performed inherently safely , while simultaneously running more economically . With its proven reliability and demonstrated advantages , the SpinPro reactor is becoming increasingly prevalent in production sites worldwide , underscoring its position as a valuable tool in the chemical industry ’ s transition to continuous manufacturing . ●
References : 1 : K . van Eeten , Hydrodynamics of rotating multiphase flows , PhD thesis , Eindhoven University of Technology , 2015 2 : https :// www . linkedin . com / posts / flowid _ flowid-highly-selective-and-non-cryogenic-activity-7090686601747406848-tgA9 / 3 : R . Feng , Synthesis and evaluation of pharmaceutical & fine chemicals processes for intensification & sustainability benefits , PhD thesis , Newcastle University , 2018 4 : U . Wietelmann , J . Klösener , P . Rittmeyer , S . Schnippering , H . Bats & W . Stam Organic Process Research & Development , 202 , 26 ( 5 ), 1422-1421 5 : M . Meeuwse , J . van der Schaaf , B . Kuster & J . Schouten ( 2010 ), Chemical Engineering Science , 2010 , 65 ( 1 ), 466-471 6 : F . Haseidl , J . Pottbäcker & O . Hinrichsen , Chemical Engineering & Processing , 2016 , 104 , 181-189
Dr Kevin van Eeten
DIRECTOR OF DEVELOPMENT & FLOW SOLUTIONS
FLOWID k + 31 6 4585 5431 J kevin . vaneeten @ flowid . nl j www . flowid . nl
����������������������������������� ������ ������ ���������������������
��������������� � ��������������� � �������������� � ���������
• ���������������������
• ������������������������
• ������������������������
• ������������������������
