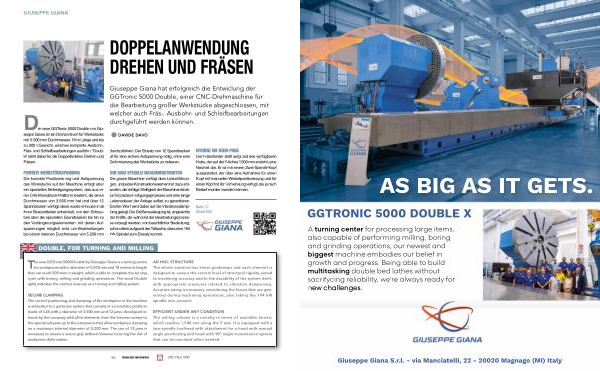

DOPPELANWENDUNG DREHEN UND FRÄSEN
Die neue GGTronic 5000 Double von Giuseppe Giana ist ein Drehzentrum für Werkstücke mit 5.500 mm Durchmesser , 18 m Länge und bis zu 200 t Gewicht , welches komplette Ausbohr- , Fräs- und Schleifbearbeitungen ausführt . “ Double ” steht dabei für die Doppelfunktion Drehen und Fräsen .
PERFEKTE WERKSTÜCKSPANNUNG
Die korrekte Positionierung und Aufspannung des Werkstücks auf der Maschine erfolgt über ein spezielles Befestigungssystem , das aus einer C45-Monoblock-Plattform besteht , die einen Durchmesser von 3.500 mm hat und über 12 Spannbacken verfügt ; diese wurde in-house in all ihren Bestandteilen entwickelt , von den Schrauben über die speziellen Grundbacken bis hin zu den Verlängerungselementen , mit denen Aufspannungen möglich sind , um Bearbeitungen bei einem internen Durchmesser von 5.200 mm
Giuseppe Giana hat erfolgreich die Entwiclung der GGTronic 5000 Double , einer CNC-Drehmaschine für die Bearbeitung großer Werkstücke abgeschlossen , mit welcher auch Fräs- , Ausbohr- und Schleifbearbeitungen durchgeführt werden können .
DAVIDE DAVÒ
durchzuführen . Der Einsatz von 12 Spannbacken ist für eine sichere Aufspannung nötig , ohne eine Deformierung des Werkstücks zu riskieren .
EINE GANZ SPEZIELLE MASCHINENSTRUKTUR
Die ganze Maschine verfügt über Linearführungen , und jedes Konstruktionselement ist dazu entworfen , die richtige Steifigkeit der Maschinenstruktur für präzise Fertigungsprozesse und eine lange Lebensdauer der Anlage selbst zu garantieren . Großer Wert wird dabei auf die Vibrationsdämpfung gelegt . Die Größenauslegung ist , angesichts der Kräfte , die während der Bearbeitungsprozesse erzeugt werden , von beachtlicher Bedeutung , schon allein aufgrund der Tatsache , dass eine 194 kW-Spindel zum Einsatz kommt .
EFFIZIENZ UM JEDEN PREIS
Der Fräsständer stellt aufgrund des verfügbaren Hubs , der auf der Y-Achse 1.500 mm erreicht , eine Neuheit dar . Er ist mit einem Zwei-Spindel-Kopf ausgestattet , der über eine Aufnahme für einen Kopf mit manueller Winkelpositionierung und für einen Kopf mit 90 ° -Umlenkung verfügt , die je nach Bedarf montiert werden können .
Halle 17 Stand E04
DOUBLE , FOR TURNING AND MILLING
The new GGTronic 5000 Double by Giuseppe Giana is a turning centre for workpieces with a diameter of 5,500 mm and 18 meters in length that can reach 200 tons in weight , which is able to complete the turning cycle with boring , milling and grinding operations . The word Double aptly indicates the centre ’ s dual use as a turning and milling system .
SECURE CLAMPING The correct positioning and clamping of the workpiece in the machine is entrusted to a particular system that consists of a monobloc platform made of C45 with a diameter of 3,500 mm and 12 jaws , developed inhouse by the company with all its elements , from the traverse screws to the special sub-jaws up to the extensions that allow workpiece clamping on a maximum internal diameter of 5,200 mm . The use of 12 jaws is necessary to ensure a secure grip without however incurring the risk of workpiece deformation .
AD HOC STRUCTURE The whole machine has linear guideways and each element is designed to ensure the correct level of structural rigidity aimed to machining accuracy and to the durability of the system itself , with appropriate measures related to vibration dampening . Accurate sizing is necessary considering the forces that are generated during machining operations , also taking the 194 kW spindle into account .
EFFICIENT UNDER ANY CONDITION The milling column is a novelty in terms of available stroke , which reaches 1,500 mm along the Y axis . It is equipped with a two-spindle toolhead with attachment for a head with manual angle positioning and head with 90 ° angle transmission system that can be mounted when needed .
