442 SYSTEMS / SYSTEMY

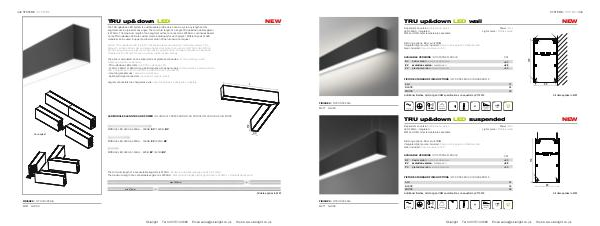

TRU up & down LED
The TRU up & down LED system is customizable profile which can be cut to any length and its segments can be joined at any angle. The minimum length of a single TRU up & down LED segment is 570mm. The maximum length of one segment without a connector is 2200mm. Luminaires based on the TRU up & down LED are custom made individually for each project. Different types of LED modules can be used in upper and lower section of the luminaire on request.
System TRU up & down LED to profil z możliwością łączenia dowolnych odcinków prostych lub kątowych. Jeden odcinek bez zastosowania łącznika może mieć wymiar od 570mm do 2200mm. Oprawa przygotowywana jest pod indywidualny projekt Klienta. Istnieje możliwość zastosowania modułów LED o różnych mocach w górnej i dolnej części oprawy.
The price is calculated on one linear metre of profile and includes / W cenie jednego metra bieżącego systemu zawarte są:- TRU up & down LED profile / profil TRU up & down LED- 140mm, 280mm or 560mm long LED modules with power supply / zintegrowane z oprawą moduły LED o długościach 140mm, 280mm lub 560mm wraz z zasilaczem- mounting accessories / akcesoria montażowe- optional straight connectors / opcjonalnie łączniki proste
L
NEW
Angular connectors are charged as extra / Łączniki kątowe są dostępne za dopłatą
110
L
60
LED MODULES LENGTHS AND POWER / DŁUGOŚCI POSZCZEGÓLNYCH MODUŁÓW LED ORAZ ICH MOCE on request
MODULE LED 350mA, 560mm- 3000lm EV / 1630lm BV
110
60
MODULE LED 350mA, 280mm- 1500lm EV / 820lm BV
MODULE LED 350mA, 140mm- 820lm EV / 420lm BV
The minimum length of a connectable segment is 570mm / Minimalna długość jednego odcinka to 570mm The maximum length of a connectable segment is 2200mm / Maksymalna długość jednego odcinka to 2200mm z możliwością łączenia
max 2200mm + min 570mm + All data applies to WW
FINISHES / WYKOŃCZENIA MATT GLOSS
