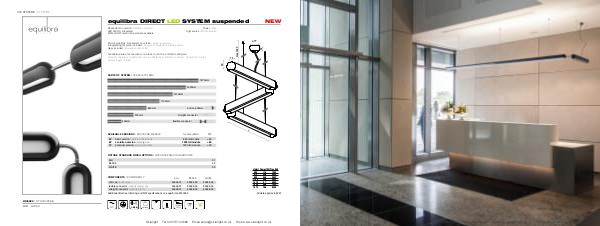

418 SYSTEMS / SYSTEMY equilibra DIRECT LED SYSTEM suspended NEW
Dependent on version / Zależna od wersji LED 350mA, integrated WW and NW colour temperatures available
Power / Moc Light source / Źródło światła
Dimming options: Dependent on version / Zależna od wersji Integrated light source included / Zawiera zintegrowane źródło światła Gear included / Zawiera zasilacz LED
Available colors of connection wire: black, red, white, anthracite and gold. Przewód zasilający w tekstylnym oplocie dostępny w kolorach: czarnym, czerwonym, białym, antracytowym i złotym.
72
max 1900
ø77
38
60
PARTS OF SYSTEM / CZĘŚCI SYSTEMU 1970mm
1690mm
1410mm
1130mm
> 0,2 m various850mm end cap 35mm
570mm straight connector
290mm flexible connector
L
AVAILABLE VERSIONS / DOSTĘPNE WERSJE module( 28cm) CRI
BV EV PV
basic version / wersja podstawowa evolution version / wersja evo premium version / wersja premium
820 lm / module 1500 lm / module 1230 lm / module
> 80 > 80 > 90
FIXTURE STANDARD FINISH OPTIONS / WYKOŃCZENIA STANDARDOWE
ALU BLACK WHITE
COMPONENTS / KOMPONENTY
ALU
BLACK
end cap / końcówka
50034-01
50034-02
fexible connector / łącznik elastyczny
50029-01
50029-02
straight connector / łącznik prosty
50028-01
50028-02
Additional finishes, dimming and NW specifications on aquaform. pl / E10005
WHITE
01 02 03
50034-03 50029-03 50028-03
L [ mm ] Power [ W ]
Flux [ lm ]
290
11.4
1200
570
22.8
2400
850
34.2
3600
1130
45.6
4800
1410
57
6000
1690
68.4
7200
1970
79.8
8400
All data applies to WW
FINISHES / WYKOŃCZENIA MATT GLOSS
> 0,2 m various
