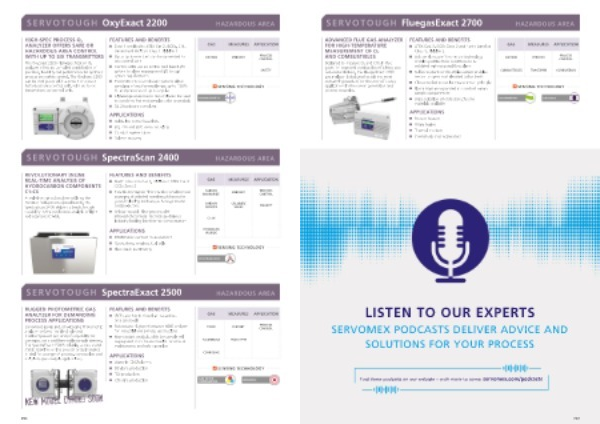

SERVOTOUGH OxyExact 2200
HAZARDOUS AREA
HIGH-SPEC PROCESS O 2 ANALYZER OFFERS SAFE OR HAZARDOUS AREA CONTROL WITH UP TO SIX TRANSMITTERS
The OxyExact 2200 high-specification O2 analyzer offers an unrivaled combination of precision , flexibility and performance for optimum process and safety control . The OxyExact 2200 can be configured with a Zone 1 or Zone 2 hazardous area control unit , with up to six transmitters per control unit .
FEATURES AND BENEFITS
Zone 1 certified to ATEX Cat 2 , IECEx , CML ( Japan ) and FM / CSA Class 1 Division 1
Up to six transmitters can be connected to one control unit
Control units use an option card based I / O system to allow expansion of I / O to suit system requirements
Transmitter three-enclosure systems allow sampling of any flammable gas up to 100 %
O2 and pressures of up to 45psia
High-temperature transmitter eliminates the need to condense hot wet samples prior to analysis
SIL 2 hardware compliant
APPLICATIONS
Oxidation control reactions EO , PTA and EDC manufacturing Catalyst regeneration Solvent recovery
GAS MEASURES APPLICATION
OXYGEN
PERCENT
SENSING TECHNOLOGY
PROCESS CONTROL
SAFETY
SERVOTOUGH SpectraScan 2400
HAZARDOUS AREA
REVOLUTIONARY INLINE REAL-TIME ANALYSIS OF HYDROCARBON COMPONENTS C1-C6
A real-time optical analyzer utilizing the Precisive field-proven optical bench , the SpectraScan 2400 delivers a breakthrough capability in the continuous analysis of light hydrocarbons C1-C6 .
FEATURES AND BENEFITS
North American Cat 1 , Division 2 ATEX Cat 3 IECEx Zone 2
Tunable band-pass filter enables simultaneous scanning of selected wavelength bands for gases including methane , ethane , propane and iso-butane
Unique tunable filter process with Infrared photometer technology delivers industry-leading interference compensation
APPLICATIONS
BTU / Wobbe content measurement Gas turbine , engines , fuel cells Flare stack monitoring
GAS MEASURES APPLICATION
CARBON MONOXIDE
CARBON DIOXIDE
C1-C6
HYDROGEN SULFIDE
PERCENT
CALORIFIC VALUE
SENSING TECHNOLOGY
PROCESS CONTROL
QUALITY
SERVOTOUGH SpectraExact 2500
HAZARDOUS AREA
RUGGED PHOTOMETRIC GAS ANALYZER FOR DEMANDING PROCESS APPLICATIONS
Servomex ’ s iconic industry-leading Photometric analyzer delivers flexible single and multicomponent gas analysis capability for corrosive , toxic and flammable sample streams . The SpectraExact 2500 ’ s reliable , accurate and stable real-time online process analysis makes it ideal for a range of process , combustion and emissions gas analysis applications .
FEATURES AND BENEFITS
IECEx and North American hazardous area approvals
Robust and high-performance NDIR analyzer for industrial and process applications
Non-contact analysis , with the sample cell segregated from the electronics for ease of maintenance and safe operation
APPLICATIONS
Water in EDC / solvents Ethylene production TDI production Chlorine production
GAS MEASURES APPLICATION
TOXIC
FLAMMABLE
CORROSIVE
PERCENT
TRACE PPM
SENSING TECHNOLOGY
PROCESS CONTROL
NEW MODEL COMING SOON
P06
