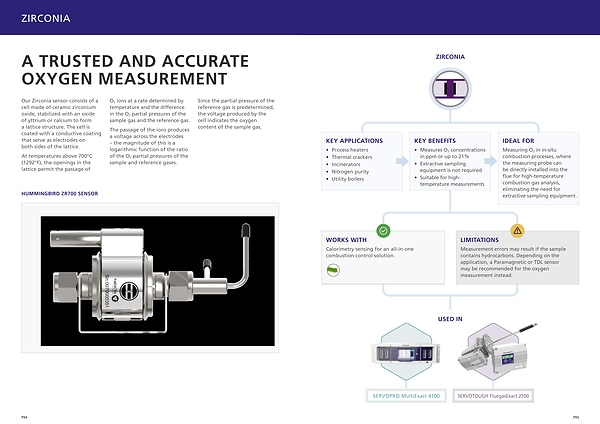

ZIRCONIA
KEY APPLICATIONS
• Process heaters
• Thermal crackers
• Incinerators
• Nitrogen purity
• Utility boilers
KEY BENEFITS
• Measures O 2 concentrations in ppm or up to 21 %
• Extractive sampling equipment is not required
• Suitable for hightemperature measurements
IDEAL FOR
Measuring O 2 in in-situ combustion processes , where the measuring probe can be directly installed into the flue for high-temperature combustion gas analysis , eliminating the need for extractive sampling equipment .
WORKS WITH
Calorimetry sensing for an all-in-one combustion control solution .
LIMITATIONS
Measurement errors may result if the sample contains hydrocarbons . Depending on the application , a Paramagnetic or TDL sensor may be recommended for the oxygen measurement instead .
USED IN
SERVOPRO MultiExact 4100 SERVOTOUGH FluegasExact 2700
P95
