MO D U L O R
2260

1397

863

534
330
204

2260

1397

863

534

204
330

48
78
126

30

126
78
48
30

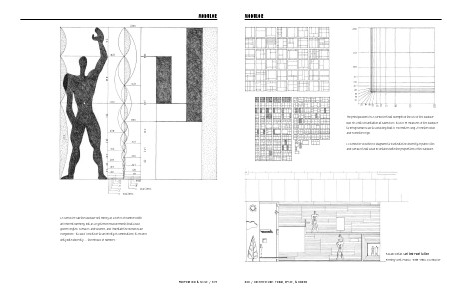

The principal work of Le Corbusier that exemplified the use of the Modulor
was his Unité d’Habitation at Marseilles. It uses 15 measures of the Modulor
to bring human scale to a building that is 140 meters long, 24 meters wide,
and 70 meters high.
Le Corbusier used these diagrams to illustrate the diversity of panel sizes
and surfaces that could be obtained with the proportions of the Modulor.

Facade Detail, Unité d’Habitation,
Firminy-Vert, France, 1965–68, Le Corbusier
