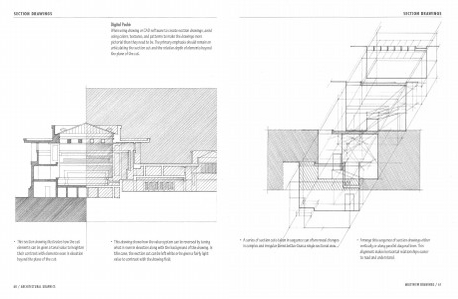

SECTION DRAWINGS
Digital Poche
When using drawing or CAD software to create section drawings, avoid
using colors, textures, and patterns to make the drawings more
pictorial than they n to be.The primary emphasis should remain on
eed
articulating the section cut and the relative depth of elements beyond
the plane of the cut.
• This section drawing illustrates how the cut
elements canbe given a tonal value to heighten
their contrast with elements seen in elevation
beyond the plane of the cut.
60 /ARCHITECTURAL GRAPHICS
!
I
• This drawing shows how the value system can be reversed by toning
what is seen in elevation along with the background of the drawing. In
this case, the section cut can be left w or be given a fairly light
hite
value to contrast with the drawingfield.
