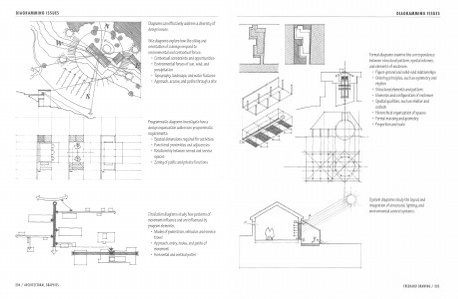

DIAGRAMMING ISSUES
Formal diagrams examine the correspondence
betweenstructural pattern, spatial volumes,
and elements of enclosure.
• Figure-ground and solid-void relationships
• Ordering principles, such as symmetry and
rhythm
• Structural elements and pattern
• Elements and configuration of enclosure
• Spatial qualities, such as shelter and
outlook
• Hierarchical organization of spaces
• Formal massing and geometry
• Proportion and scale
System diagrams study the layout and
integration of structural, lighting, and
environmental control systems.
