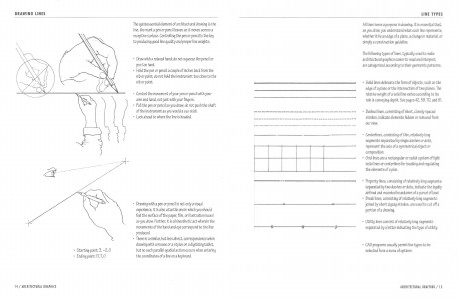

LINE TYPES
All lines serve apurpose in drawing. It is essential that,
asyoudraw, you understand what each line represents,
w
hether it be an edge of a plane, a change in material, or
simply aconstruction guideline.
The following types of lines, typically used to make
architectural graphics easier to read and interpret,
are categorized according to their geometric patterns.
• Solid lines delineate the form of objects, such as the
edge of a plane or the intersection of two planes. The
relat
