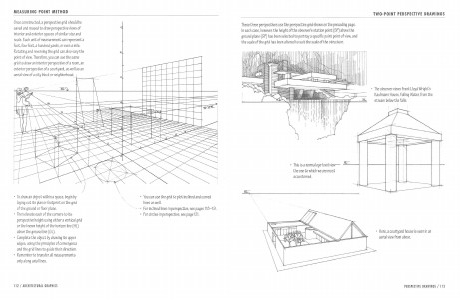

TWO-POINT PERSPECTIVE DRAWINGS
These three perspectives use the perspective grid shown on the preceding page.
In each case, however, the height of the observer's station point (SP) above the
ground plane (GP) has been selected to portray a specific point point of view, and
the scale of the grid has been altered to suit the scale of the structure.

• The observer views FrankLloyd Wrigh
t's
K
aufmann House, Falling Water, from the
stream below the falls.

• This is anormal eye-level viewthe one to which we are most
accustomed.

m.-:

...:..:.:___-+

• Here, a cou rtyard house is seen in an
aeria l view from above.

PERSPECTIVE DRAWINGS / 113
