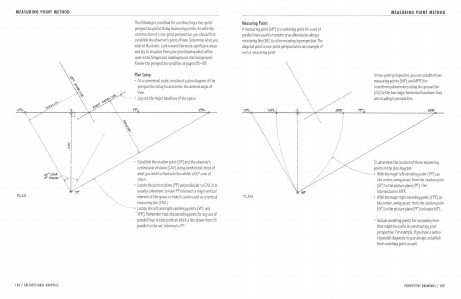

MEASURING POINT METHOD
Measuring Points
A measuring point (MP) is a vanishing point for aset of
parallel lines used to transfer true dimensions along a
measuring line (ML) to a line receding in perspective. The
diagonal point in one-point perspective is one example of
such ameasuring point.
\
\
\
In two-point perspective, you canestablishtwo
measuring points (MPL and MPR) for
transferring dimensions along the ground line
(GL) to the two major horizontal baselines that
are receding in perspective.
\
\
\
\
. VPl-
-.MPC...
\
\
\
\
\
I
\
\
\
I
I
)
~'
f'LAN
/
I
To determine the location of these measuring
~ points in the plan diagram:
~ With the major left vanishing point (VPL) as
the center, swingan arc from the station point
(SP) to the picture plane (PP). This
intersection is MPR.
• With the major right vanishing point (VPR) as
the center, swing an arc from the station point
(SP) to the picture plane (PP) to locate MPL.
• Include vanishing points for secondary lines
that might be useful in constructing your
perspective. For example, if you have a series
of parallel diagonals in your design, establish
their vanishing point as well.
PERSPECTIVE DRAWINGS /109
