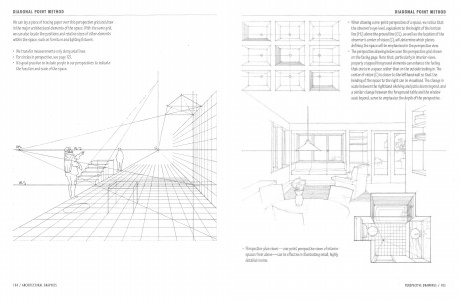

DIAGONAL POINT METHOD
We can lay a piece of tracing paper over this per·spective grid and draw
in the major architectural elements of the space. With the same grid,
we can also locate the positions and relative sizes of other elements
within the space, such as furniture and lighting fixtures.
• We transfer measurements only along axial lines.
• For circles in perspective, see page 121.
• It's good practice to include people in our perspectives to indicate
the function and scale of the space.
/
/
-----
-----
