SEDA LED LIGHTING CATALOG SEDA LED COMMERCIAL LIGHT CATALOG | Page 5

LED
SEDA LIGHTING
SEDA
Robust Die-casted Housing
Anti-glare Acrylic Diffuser
Strong Spring clips

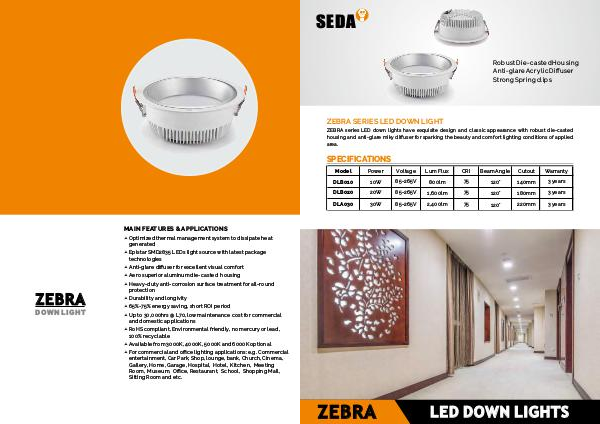

ZEBRA SERIES LED DOWN LIGHT
ZEBRA series LED down lights have exquisite design and classic appearance with robust die-casted
housing and anti-glare miky diffuser for sparking the beauty and comfort lighting conditions of applied
area.
SPECIFICATIONS
Model Power Voltage Lum Flux CRI Beam Angle Cutout Warranty
DLB010 10W 85-265V 800lm 75 120° 140mm 3 years
DLB020 20W 85-265V 1,600lm 75 120° 180mm 3 years
DLA030 30W 85-265V 2,400lm 75 120° 220mm 3 years
ZEBRA
LED DOWN LIGHTS
