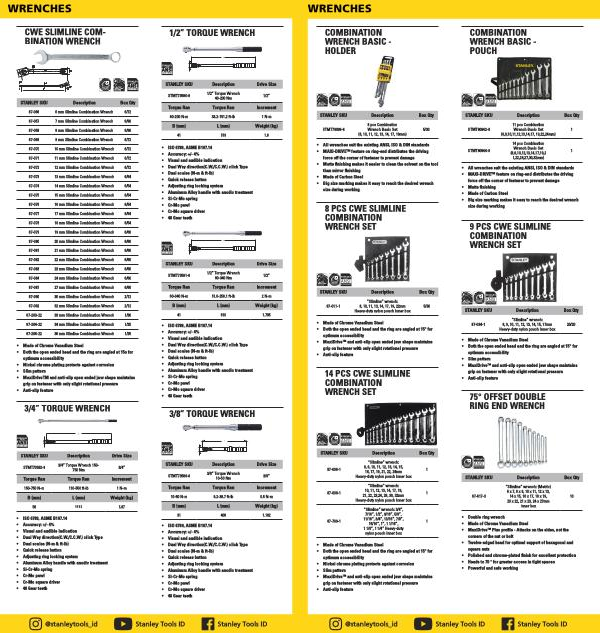

WRENCHES
B
L
CWE SLIMLINE COM- BINATION WRENCH
1 / 2 ” TORQUE WRENCH
L
EXCEEDS
ANSI
STANDARD
B
Anti Slip
STANLEY SKU Description Box Qty 87-066 6 mm Slimline Combination Wrench 6 / 72 87-057 7 mm Slimline Combination Wrench 6 / 90 87-058 8 mm Slimline Combination Wrench 6 / 90 87-069 9 mm Slimline Combination Wrench 6 / 72 87-070 10 mm Slimline Combination Wrench 6 / 72 87-071 11 mm Slimline Combination Wrench 6 / 72 87-072 12 mm Slimline Combination Wrench 6 / 72 87-073 13 mm Slimline Combination Wrench 6 / 54 87-074 14 mm Slimline Combination Wrench 6 / 54 87-075 15 mm Slimline Combination Wrench 6 / 54 87-076 16 mm Slimline Combination Wrench 6 / 54 87-077 17 mm Slimline Combination Wrench 6 / 54 87-078 18 mm Slimline Combination Wrench 6 / 54
EXCEEDS
ANSI
STANDARD
STANLEY SKU Description Drive Size
STMT73590-8
1 / 2 ” Torque Wrench 40-200 Nm
1 / 2 ”
Torque Ran Torque Ran Increment 40-200 N-m 33.2-151.2 ft-lb 1 N-m B ( mm ) L ( mm ) Weight ( kg )
41 519 1.6
• ISO 6789 , ASME B107.14
• Accuracy : +/ - 4 %
• Visual and audible indication
• Dual Way direction ( C . W ./ C . C . W .) click Type
• Dual scales ( N-m & ft-lb )
• Quick release button
• Adjusting ring locking system
• Aluminum Alloy handle with anodic treatment
• Si-Cr-Mo spring
• Cr-Mo pawl
• Cr-Mo square driver
• 48 Gear teeth
87-079 19 mm Slimline Combination Wrench 6 / 60 87-080 20 mm Slimline Combination Wrench 6 / 60 87-081 21 mm Slimline Combination Wrench 6 / 60
EXCEEDS
ANSI
STANDARD
B
L
87-082 22 mm Slimline Combination Wrench 6 / 60 87-083 23 mm Slimline Combination Wrench 6 / 60 87-084 24 mm Slimline Combination Wrench 6 / 60 87-087 27 mm Slimline Combination Wrench 6 / 60 87-090 30 mm Slimline Combination Wrench 2 / 12 87-092 32 mm Slimline Combination Wrench 2 / 12 87-263-22 33 mm Slimline Combination Wrench 1 / 30 87-264-22 34 mm Slimline Combination Wrench 1 / 25 87-266-22 36 mm Slimline Combination Wrench 1 / 25
• Made of Chrome Vanadium Steel
• Both the open ended head and the ring are angled at 15o for optimum accessibility
• Nickel chrome plating protects against corrosion
• Slim pattern
• MaxiDriveTM and anti-slip open ended jaw shape maintains grip on fastener with only slight rotational pressure
• Anti-slip feature
3 / 4 ” TORQUE WRENCH
STANLEY SKU Description Drive Size
STMT73591-8
1 / 2 ” Torque Wrench 60-340 Nm
3 / 8 ” TORQUE WRENCH
1 / 2 ”
Torque Ran Torque Ran Increment 60-340 N-m 51.6-258.1 ft-lb 2 N-m B ( mm ) L ( mm ) Weight ( kg ) 41 610 1.785
• ISO 6789 , ASME B107.14
• Accuracy : +/ - 4 %
• Visual and audible indication
• Dual Way direction ( C . W ./ C . C . W .) click Type
• Dual scales ( N-m & ft-lb )
• Quick release button
• Adjusting ring locking system
• Aluminum Alloy handle with anodic treatment
• Si-Cr-Mo spring
• Cr-Mo pawl
• Cr-Mo square driver
• 48 Gear teeth
L
EXCEEDS
ANSI
STANDARD
STANLEY SKU Description Drive Size
STMT73592-8
B
3 / 4 ” Torque Wrench 150- 750 Nm
3 / 4 ”
Torque Ran Torque Ran Increment 150-750 N-m 110-550 ft-lb 1 N-m
B ( mm ) L ( mm ) Weight ( kg ) 58 1112 5.87
• ISO 6789 , ASME B107.14
• Accuracy : +/ - 4 %
• Visual and audible indication
• Dual Way direction ( C . W ./ C . C . W .) click Type
• Dual scales ( N-m & ft-lb )
• Quick release button
• Adjusting ring locking system
• Aluminum Alloy handle with anodic treatment
• Si-Cr-Mo spring
• Cr-Mo pawl
• Cr-Mo square driver
• 48 Gear teeth
EXCEEDS
ANSI
STANDARD
STANLEY SKU Description Drive Size
STMT73588-8
3 / 8 ” Torque Wrench 10-50 Nm
• ISO 6789 , ASME B107.14
• Accuracy : +/ - 4 %
• Visual and audible indication
• Dual Way direction ( C . W ./ C . C . W .) click Type
• Dual scales ( N-m & ft-lb )
• Quick release button
• Adjusting ring locking system
• Aluminum Alloy handle with anodic treatment
• Si-Cr-Mo spring
• Cr-Mo pawl
• Cr-Mo square driver
• 48 Gear teeth
3 / 8 ”
Torque Ran Torque Ran Increment 10-50 N-m 9.2-38.7 ft-lb 0.5 N-m B ( mm ) L ( mm ) Weight ( kg ) 31 409 1.182
