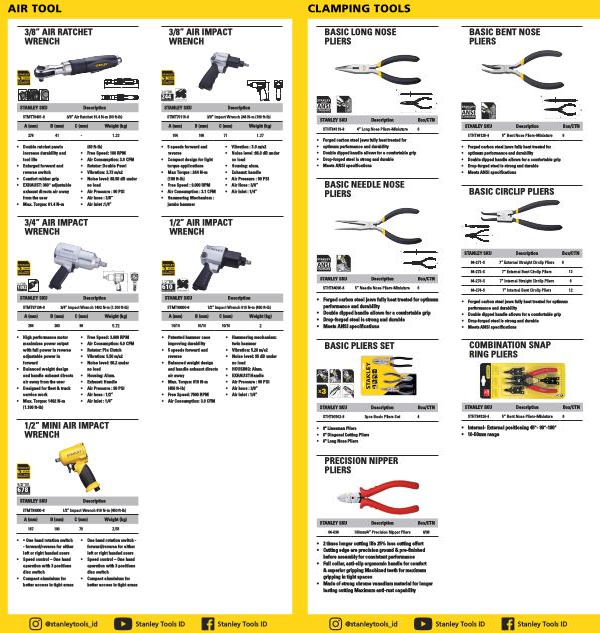

AIR TOOL m l
Pin Clutch k ç
Å
B
A
3 / 8 ” AIR RATCHET WRENCH
3 / 8 ” AIR IMPACT WRENCH
STANLEY SKU
Description
STANLEY SKU
Description
STMT78401-8 3 / 8 ” Air Ratchet 81.4 N-m ( 60 ft-lb ) A ( mm ) B ( mm ) C ( mm ) Weight ( kg )
278 41 - 1.22
STMT70116-8 3 / 8 ” Impact Wrench 244 N-m ( 180 ft-lb ) A ( mm ) B ( mm ) C ( mm ) Weight ( kg )
154 168 71 1.27
• Double ratchet pawls increase durability and tool life
• Enlarged forward and reverse switch
• Comfort rubber grip
• EXHAUST : 360 ° adjustable exhaust directs air away from the user
• Max . Torque : 81.4 N-m
( 60 ft-lb )
• Free Speed : 180 RPM
• Air Consumption : 3.9 CFM
• Rotator : Double Pawl
• Vibration : 3.73 m / s2
• Noise level : 88.50 dB under no load
• Air Pressure : 90 PSI
• Air hose : 3 / 8 ”
• Air Inlet : 1 / 4 ”
• 5 speeds forward and reverse
• Compact design for light torque applications
• Max Torque : 244 N-m ( 180 ft-lb )
• Free Speed : 9.000 RPM
• Air Consumption : 3.1 CFM
• Hammering Mechanism : jumbo hammer
• Vibration : 3.0 m / s2
• Noise level : 86.0 dB under no load
• Housing : alum .
• Exhaust : handle
• Air Pressure : 90 PSI
• Air Hose : 3 / 8 ”
• Air Inlet : 1 / 4 ”
3 / 4 ” AIR IMPACT WRENCH
1 / 2 ” AIR IMPACT WRENCH
STANLEY SKU
Description
STANLEY SKU
Description
STMT97134-8 3 / 4 ” Impact Wrench 1492 N-m ( 1.100 ft-lb ) A ( mm ) B ( mm ) C ( mm ) Weight ( kg )
259 263 99 5.72
STMT99300-8 1 / 2 ” Impact Wrench 610 N-m ( 450 ft-lb ) A ( mm ) B ( mm ) C ( mm ) Weight ( kg ) 10 / 10 10 / 10 10 / 10 2
• High performance motor maximizes power output with full power in reverse adjustable power in forward
• Balanced weight design and handle exhaust directs air away from the user
• Designed for fleet & truck service work
• Max . Torque : 1492 N-m ( 1.100 ft-lb )
• Free Speed : 3.600 RPM
• Air Consumption : 4.0 CFM
• Rotator : Pin Clutch
• Vibration : 5.50 m / s2
• Noise level : 96.2 under no load
• Housing : Alum .
• Exhaust : Handle
• Air Pressure : 90 PSI
• Air hose : 1 / 2 ”
• Air Inlet : 1 / 4 ”
• Patented hammer case improving durability
• 5 speeds forward and reverse
• Balanced weight design and handle exhaust directs air away
• Max . Torque : 610 N-m ( 450 ft-lb )
• Free Speed : 7500 RPM
• Air Consumption : 3.9 CFM
• Hammering mechanism : twin hammer
• Vibration : 5.20 m / s2
• Noise level : 95 dB under no load
• HOUSING : Alum .
• EXHAUST : Handle
• Air Pressure : 90 PSI
• Air hose : 3 / 8 ”
• Air Inlet : 1 / 4 ”
1 / 2 ” MINI AIR IMPACT WRENCH
STANLEY SKU
Description STMT99300-8 1 / 2 ” Impact Wrench 610 N-m ( 450 ft-lb )
A ( mm ) B ( mm ) C ( mm ) Weight ( kg )
187 193 70 2.58
• • One hand rotation switch - forward / reverse for either left or right handed users
• Speed control – One hand operation with 3 positions disc switch
• Compact aluminium for better access in tight areas
• One hand rotation switch - forward / reverse for either left or right handed users
• Speed control – One hand operation with 3 positions disc switch
• Compact aluminium for better access in tight areas
