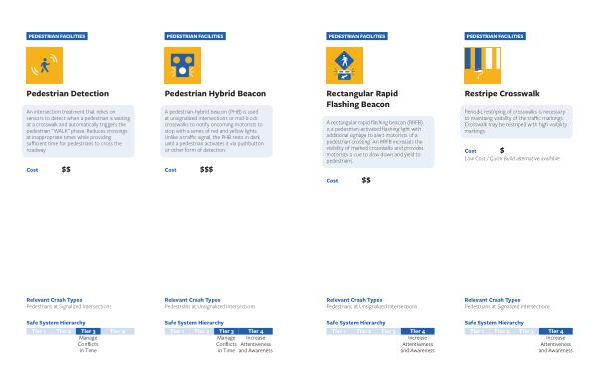

Pedestrian Detection
Pedestrian Hybrid Beacon
PEDESTRIAN FACILITIES PEDESTRIAN FACILITIES
Pedestrian Detection
An intersection treatment that relies on sensors to detect when a pedestrian is waiting at a crosswalk and automatically triggers the pedestrian “ WALK ” phase . Reduces crossings at inappropriate times while providing sufficient time for pedestrians to cross the roadway .
Pedestrian Hybrid Beacon
A pedestrian-hybrid beacon ( PHB ) is used at unsignalized intersections or mid-block crosswalks to notify oncoming motorists to stop with a series of red and yellow lights . Unlike a traffic signal , the PHB rests in dark until a pedestrian activates it via pushbutton or other form of detection .
Cost $$
Cost $$$
Relevant Crash Types Pedestrians at Signalized Intersections
Safe System Hierarchy |
Tier 1 |
Tier 2 |
Tier 3 |
Tier 4 |
|
|
Manage Conflicts in Time |
|
~ --- --
Relevant Crash Types Pedestrians at Unsignalized Intersections
Safe System Hierarchy |
Tier 1 |
Tier 2 |
Tier 3 |
Tier 4 |
|
|
Manage |
Increase |
|
Conflicts
Attentiveness
|
in Time |
and Awareness |
APPENDIX B : COUNTERMEASURES TOOLBOX B-27
